This is a sampling of various injection molded dunnage trays we have designed and manufactured.

Part: Actuator

Parts per tray: 12
Size: 15″ x 12″ x 4.88″
381 x 305 x 124 (mm)

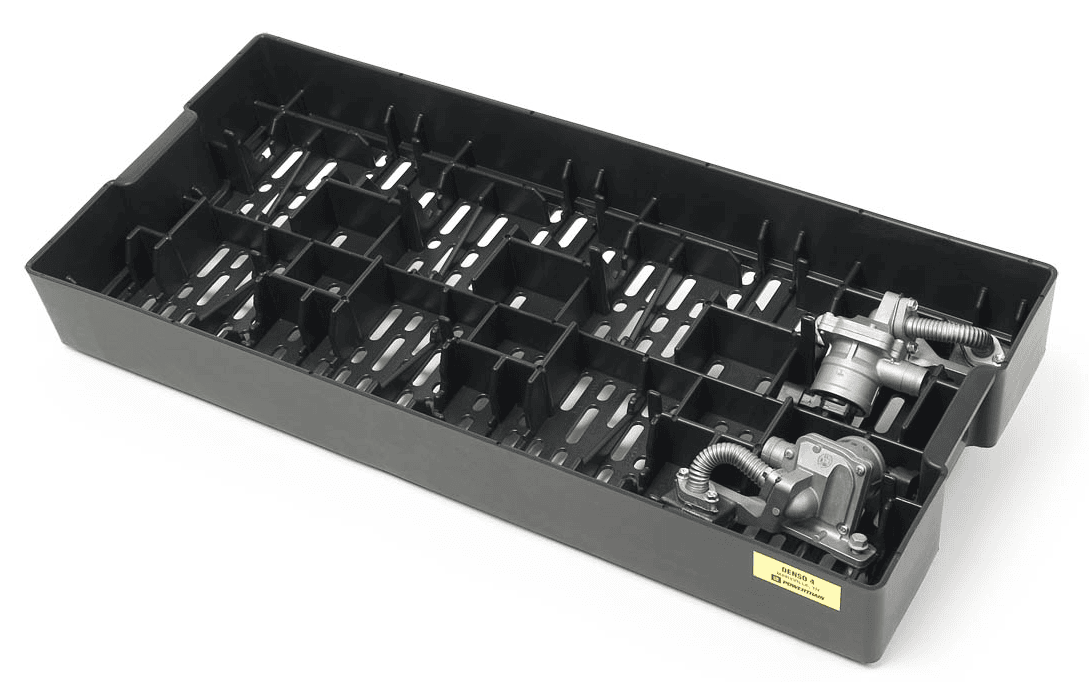

Part: Injection Valve Assembly

Parts per tray: 8
Size: 35.5″ x 15.63″ x 4.63″
902 x 397 x 118 (mm)

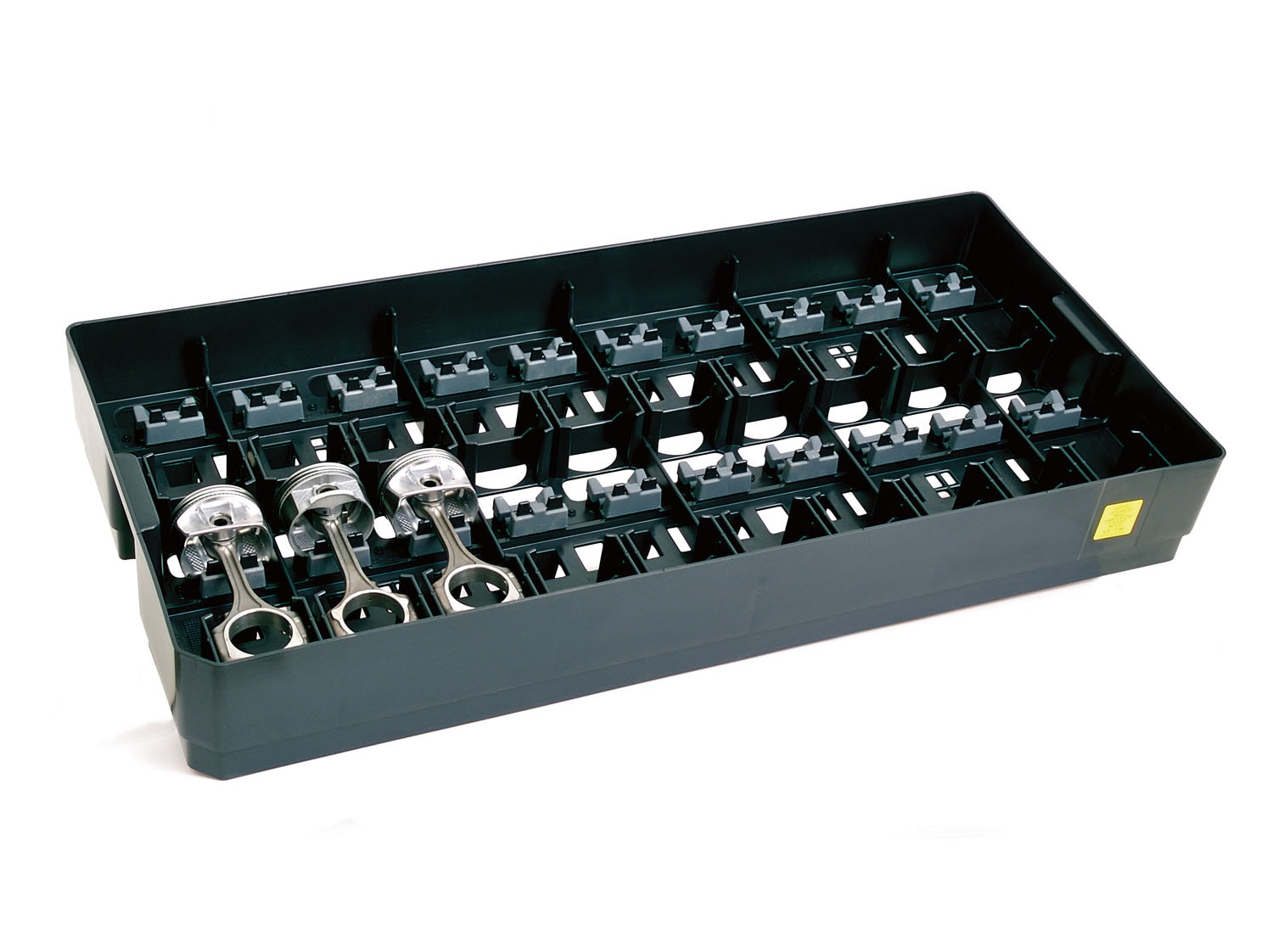

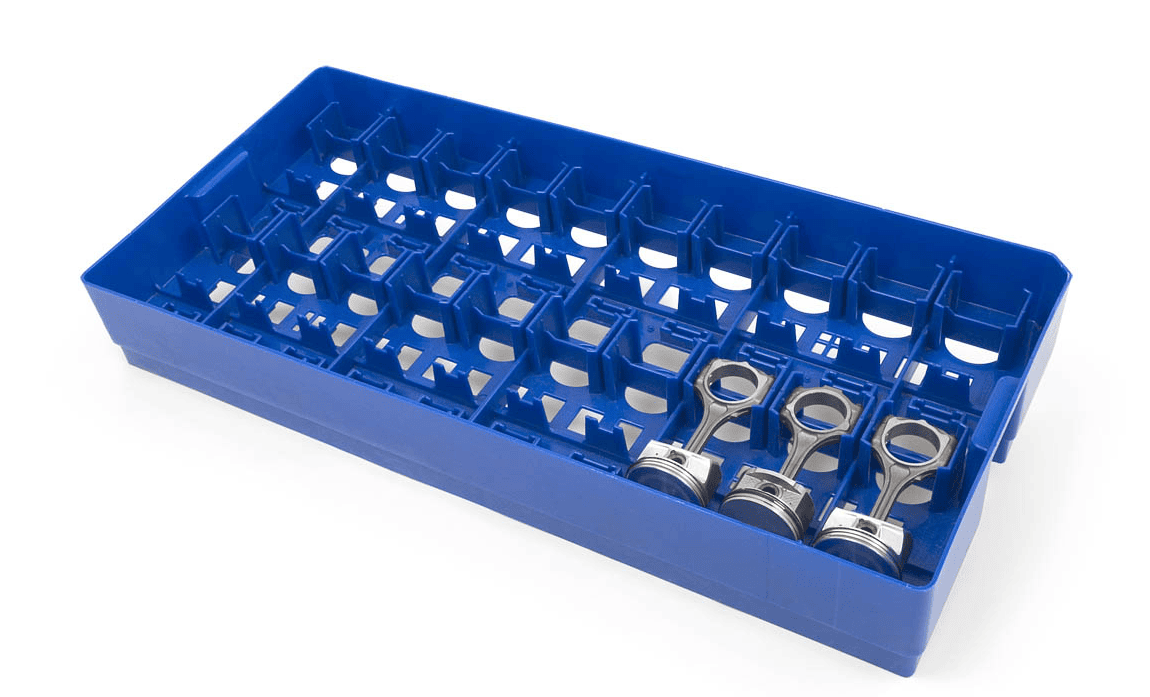

Part: Piston & Con-Rod

Parts per tray: 20
Size: 47″ x 22″ x 6.75″
1194 x 559 x 171 (mm)
Features TPU nest inserts

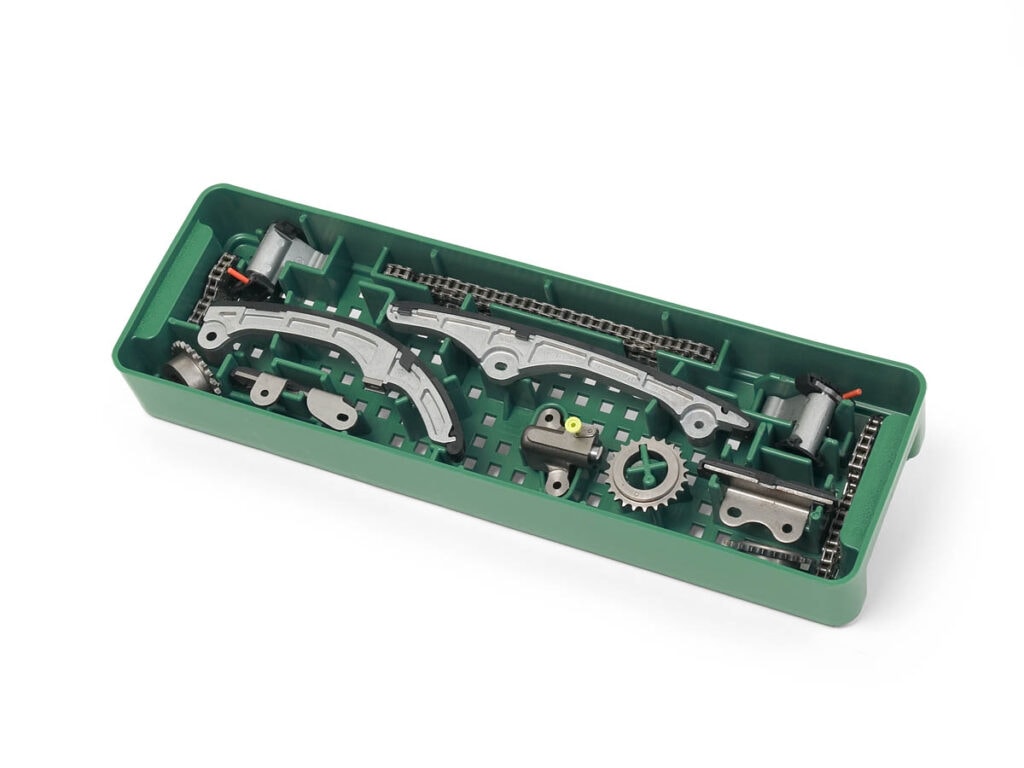

Part: Cam Timing Kit

Parts per tray: One Kit
Size: 23.25″ x 7.13″ x 3.00″
591 x 181 x 76 (mm)

Part: Camshaft

Parts per tray: 7
Size: 23″ x 21.63″ x 2.88″
582 x 549 x 73 (mm)

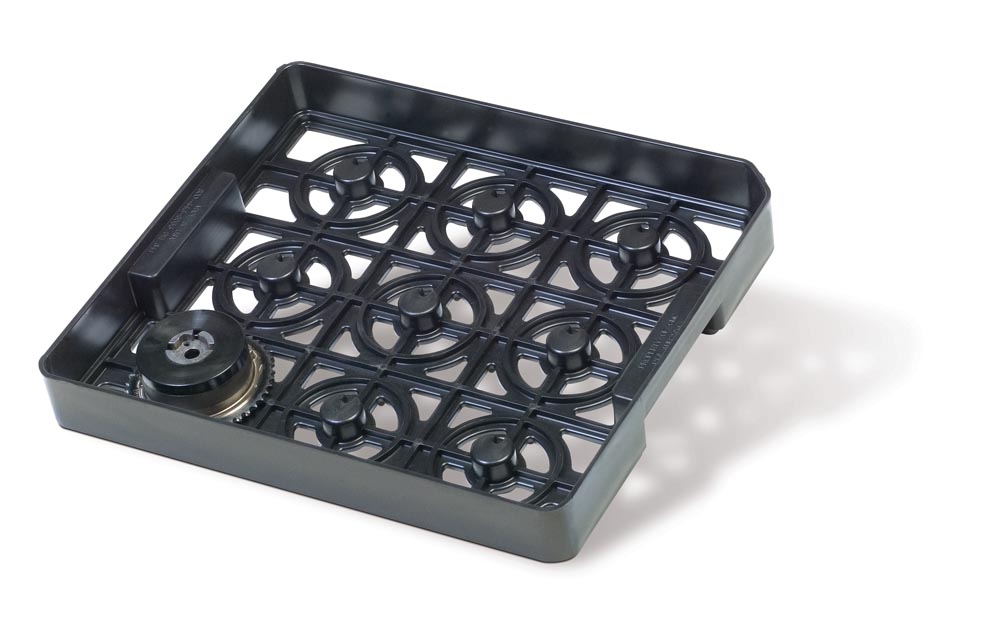

Part: Actuator

Parts per tray: 9
Size: 17.88″ x 15.88″ x 2.38″
454 x 403 x 60 (mm)
Features TPU nest inserts

Part: Electro-hydraulic control

Parts per tray: 9
Size: 47.88″ x 22.38″ x 6.25″
1216 x 568 x 159 (mm)

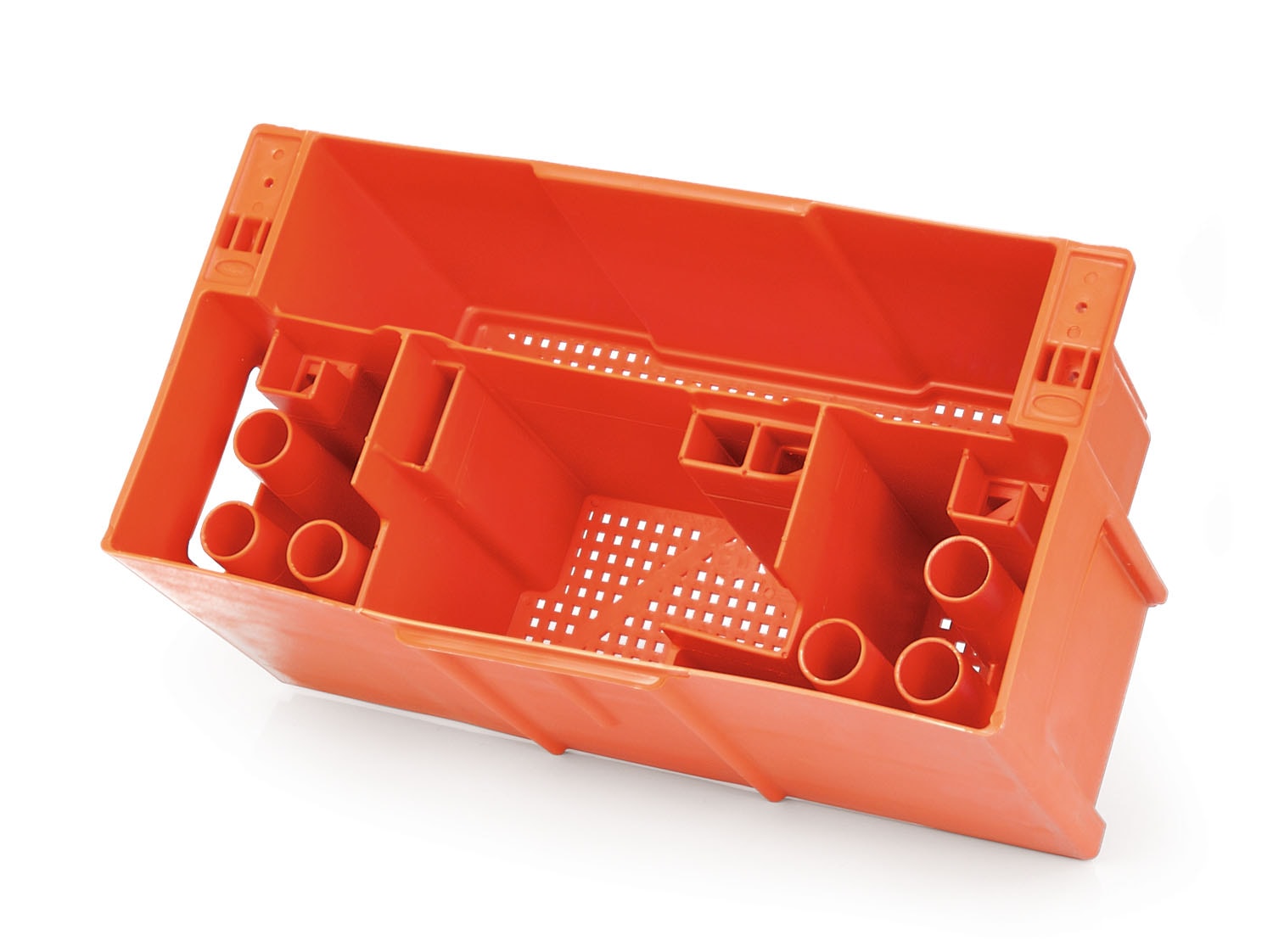

Part: Engine Components Kit

Parts per tray: One Kit
Size: 22.25″ x 11.25″ x 10″
565 x 286 x 254 (mm)

Part: Diesel Fuel Injector

Parts per tray: 6
Size: 14.88″ x 9″ x 7.50″
378 x 229 x 191 (mm)

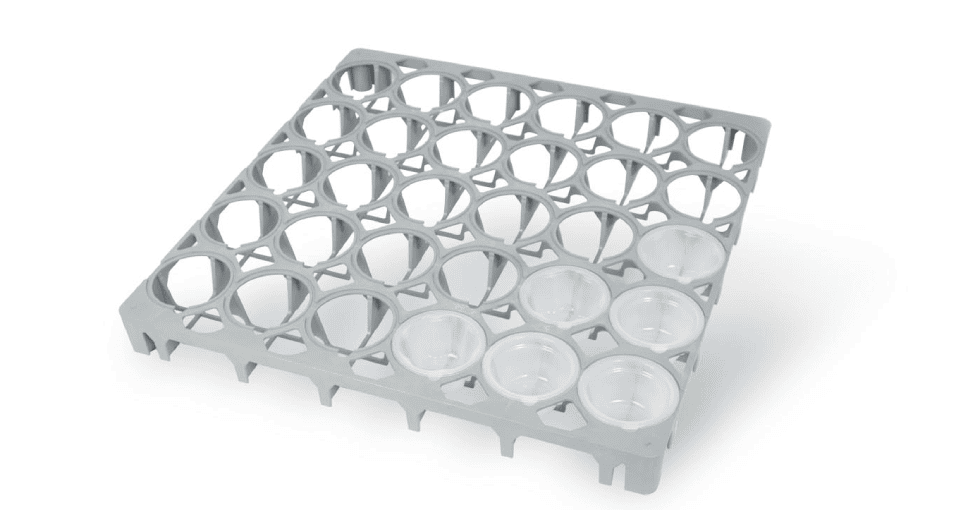

Part: Food Bowl

Parts per tray: 30
Size: 31.5″ x 31.5″ x 3″
800 x 800 x 76 (mm)
Sterilization process

Part: Valve Spring

Parts per tray: 90
Size: 23.13″ x 21.63″ x 3″
588 X 549 X 76 (mm)

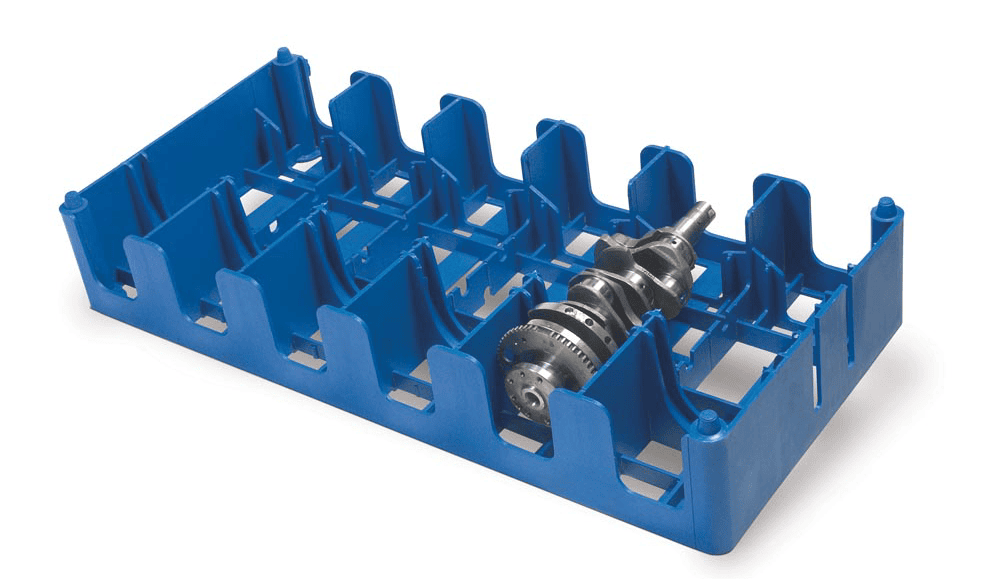

Part: Crankshaft

Parts per tray: 6
Size: 47.50″ x 22.38″ x 7.25″
1207 x 568 x 184 (mm)

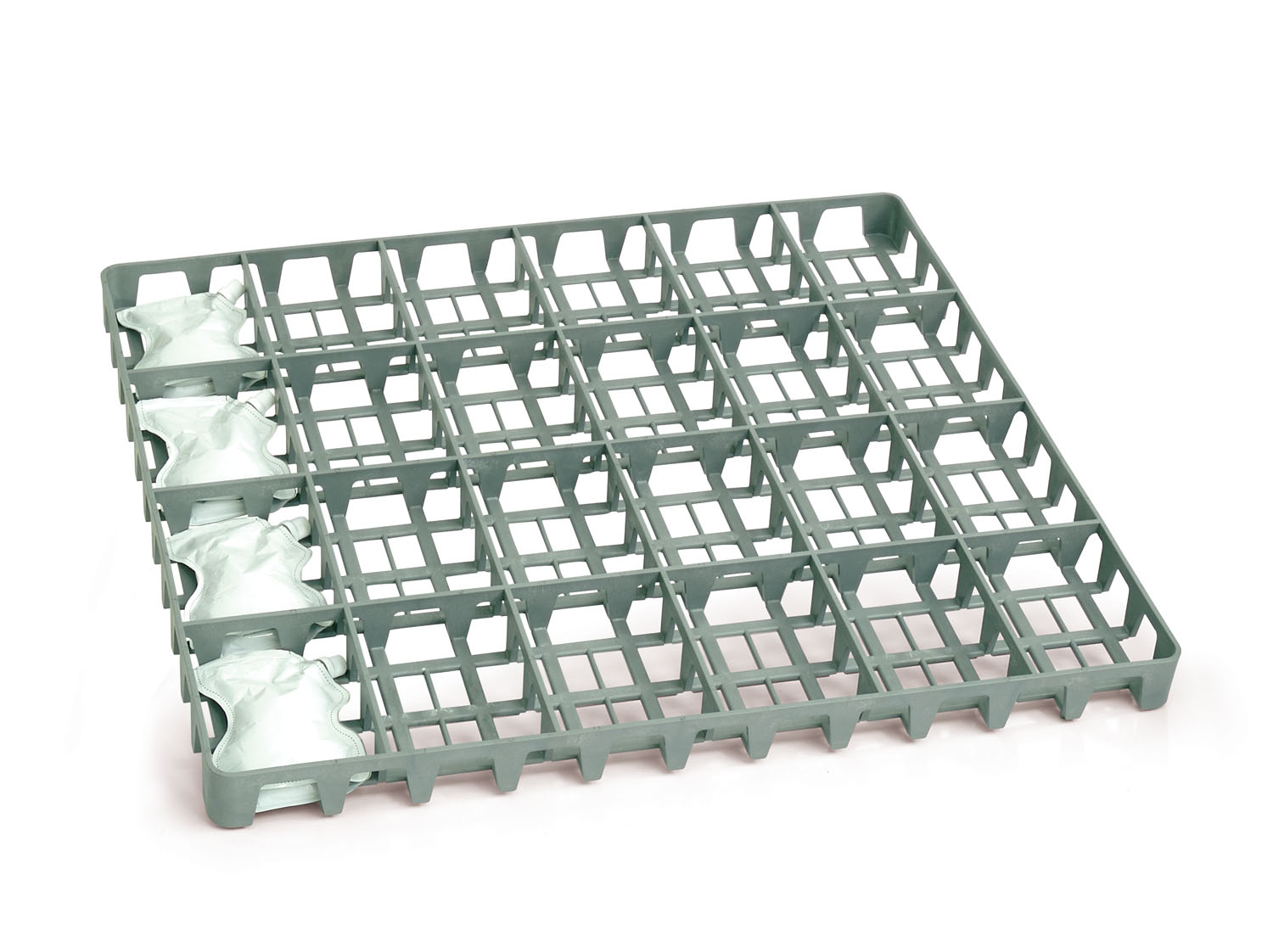

Part: Liquid Food Pouch

Parts per tray: 24
Size: 30″ x 26.63″ x 2.25″
762 x 676 x 57 (mm)
Sterilization process

Part: Solenoid

Parts per tray: 40
Size: 14.88″ x 10.63″ x 5.50″
378 x 270 x 140 (mm)

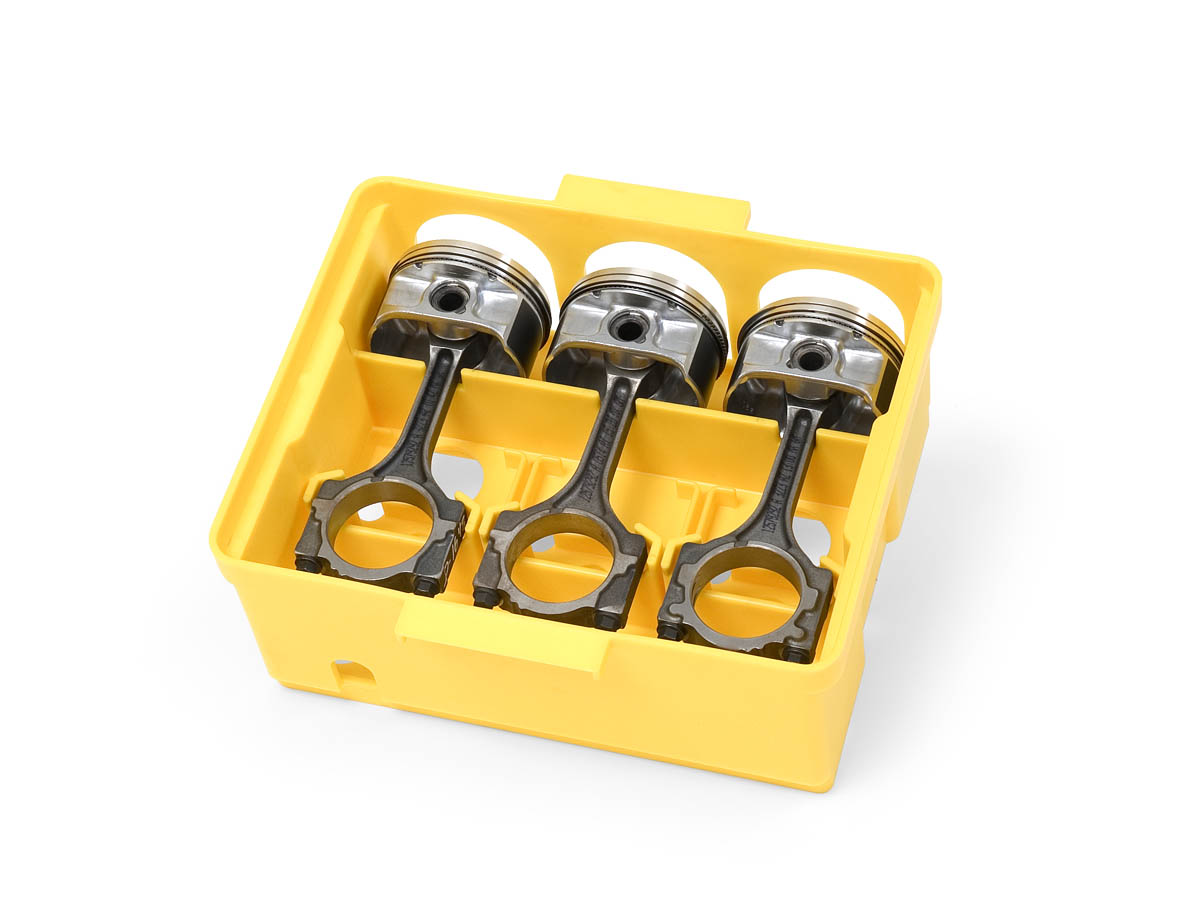

Part: Piston Assembly

Parts per tray: 3
Size: 14″ x 11″ x 5.75″
356 x 279 x 146 (mm)
Automation Tray

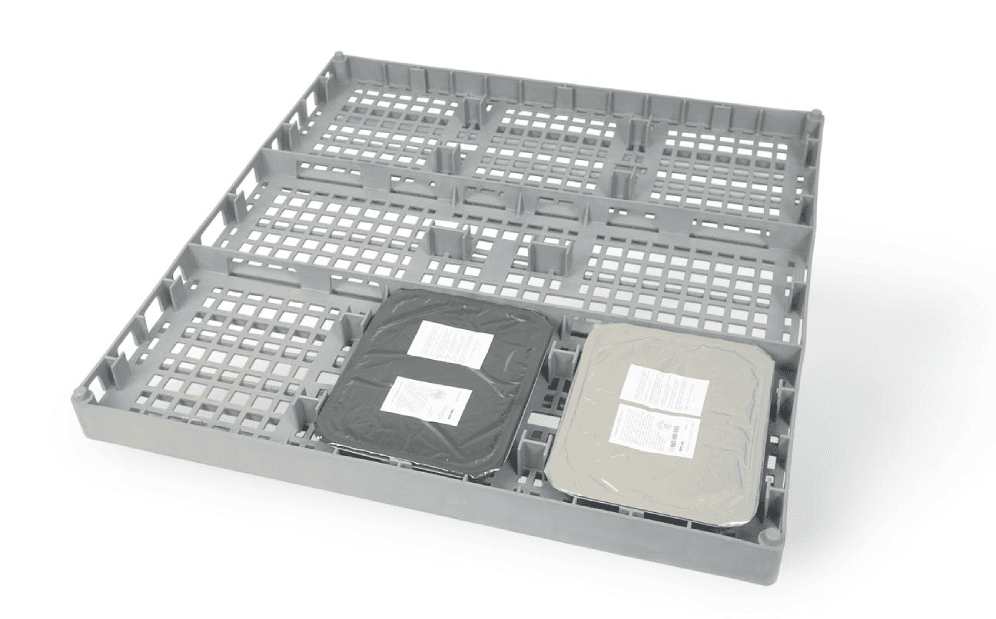

Part: Military MRE

Parts per tray: 8
Size: 38.75″ x 37.25″ x 2.75″
984 x 946 x 70 (mm)
Sterilization process

Part: Piston & Con-Rod

Parts per tray: 20
Size: 47″ x 22″ x 6.75″
1194 x 559 x 171 (mm)

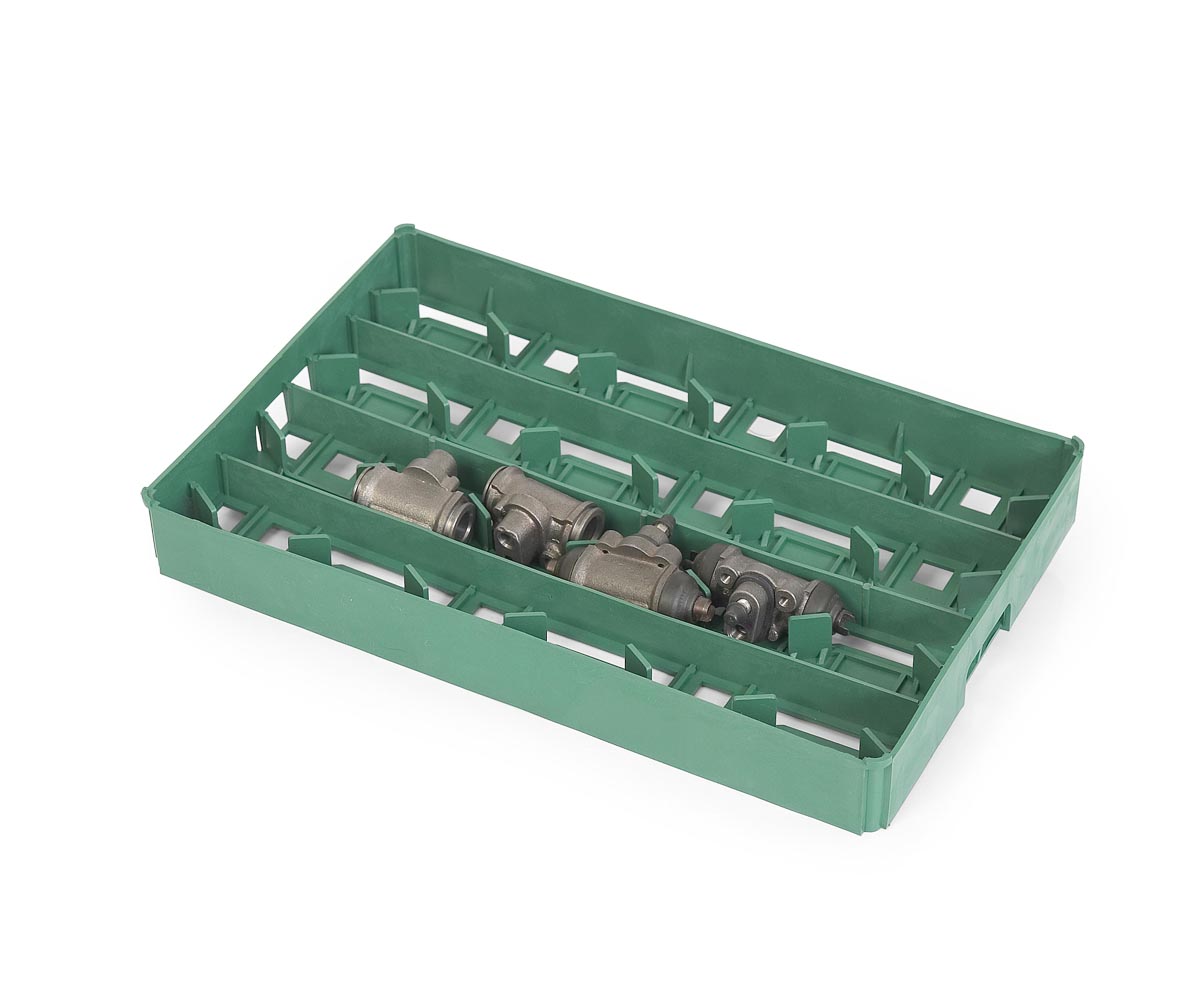

Part: Wheel Cylinder Assy

Parts per tray: 24
Size: 16.5″ x 10″ x 1.88″
419 x 254 x 48 (mm)

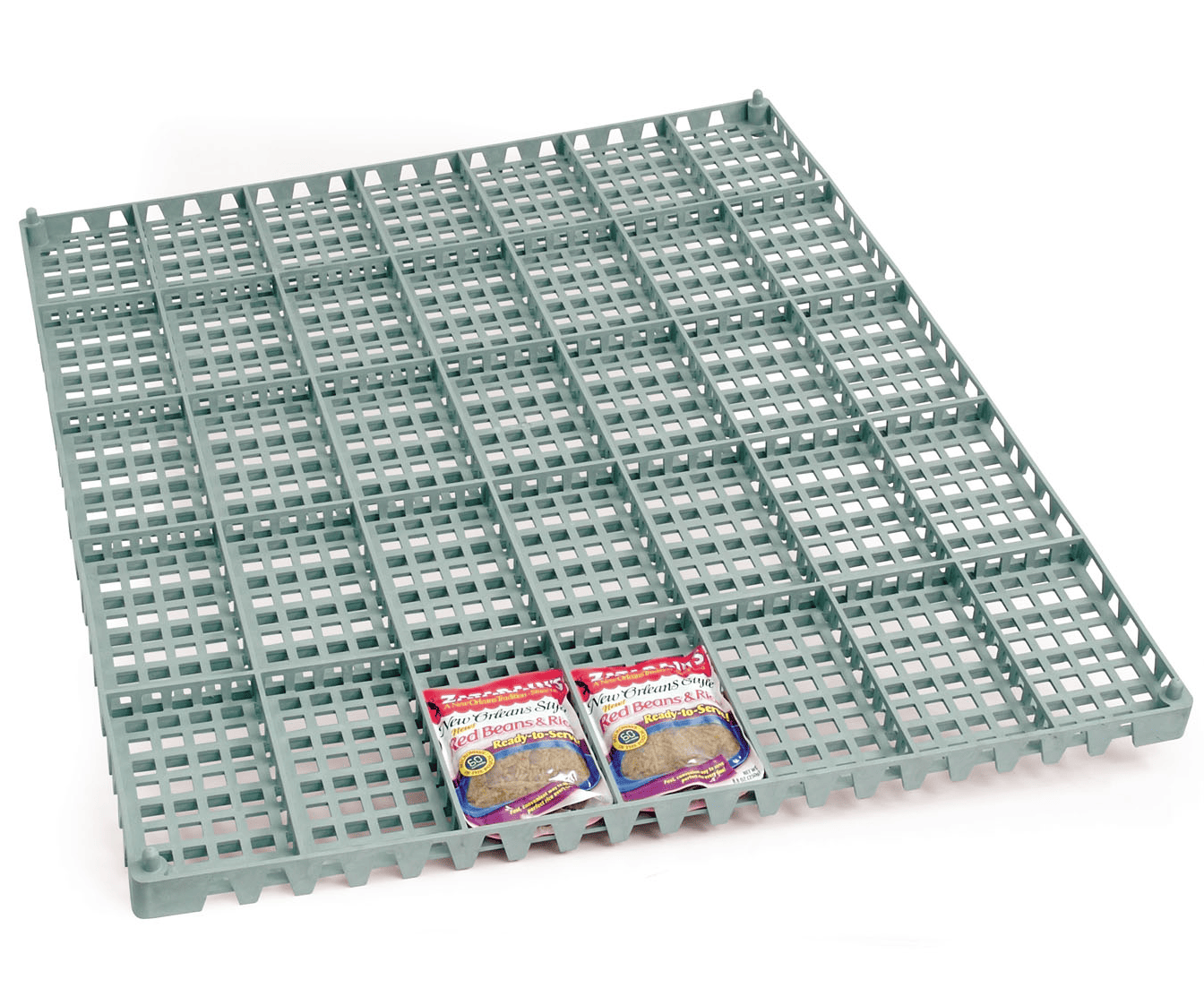

Part: Food Packet

Parts per tray: 35
Size: 44.25″ x 36.25″ x 1.63″
1124 x 921 x 41 (mm)
Sterilization process

Part: VCT Gear

Parts per tray: 10
Size: 22.5″ x 15.88″ x 3.63″
572 x 403 x 92 (mm)
Features TPU nest inserts

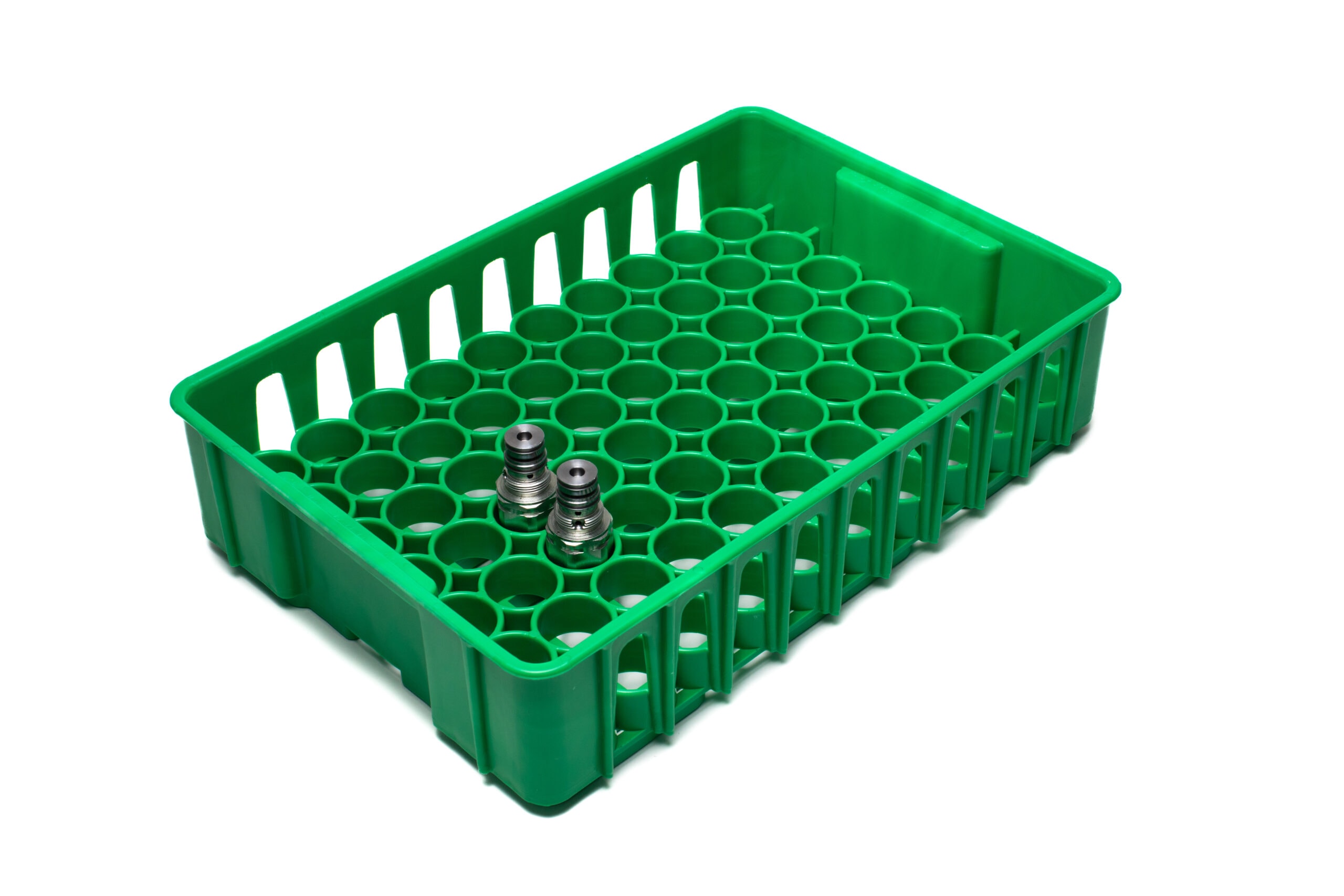

Part: Solenoid

Parts per tray: 70
Size: 17.5” x 11.63″ x 4″
445 x 295 x 102 (mm)

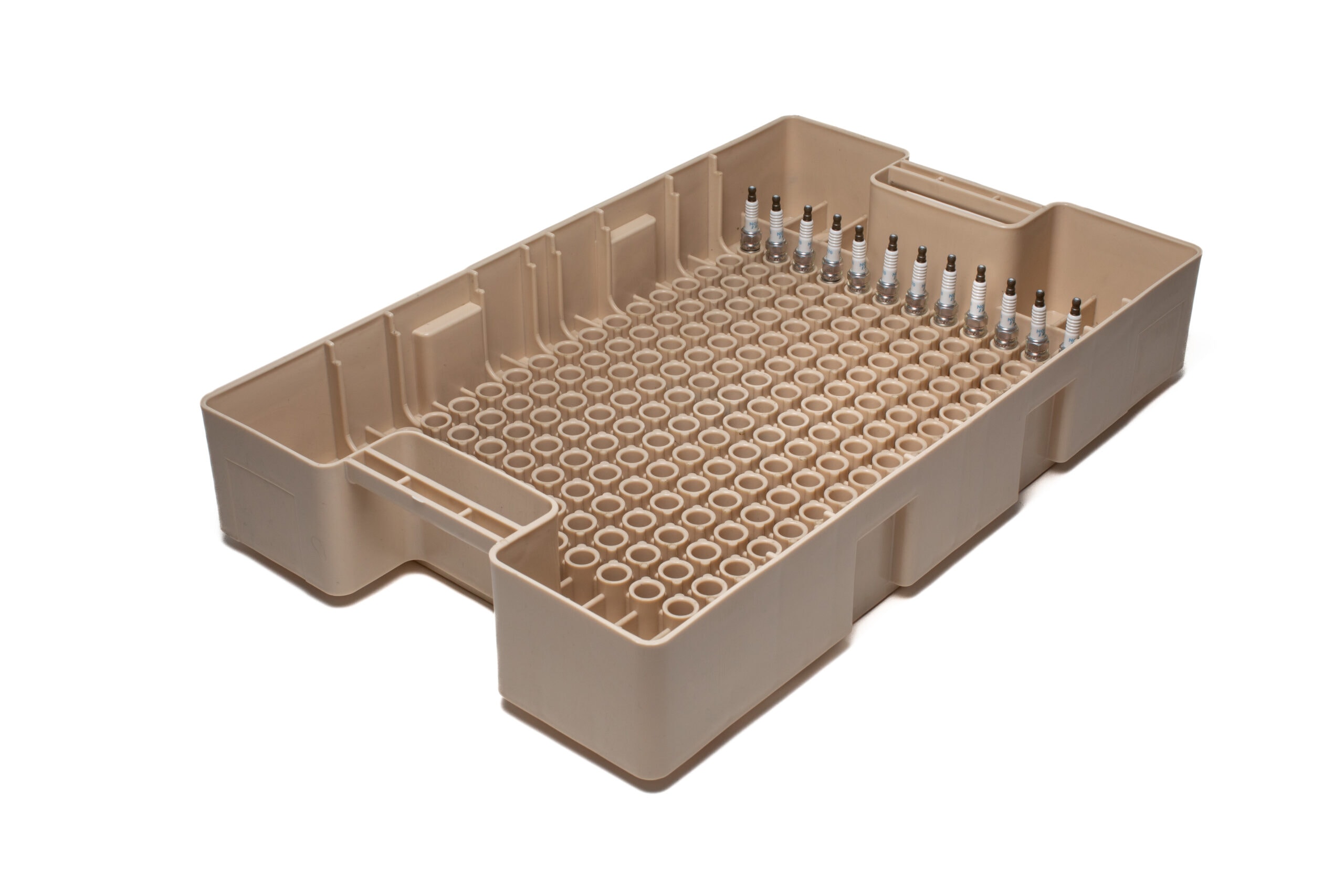

Part: Spark Plug

Parts per tray: 192
Size: 23.75” x 14.88″ x 4.25″
603 x 378 x 108 (mm)

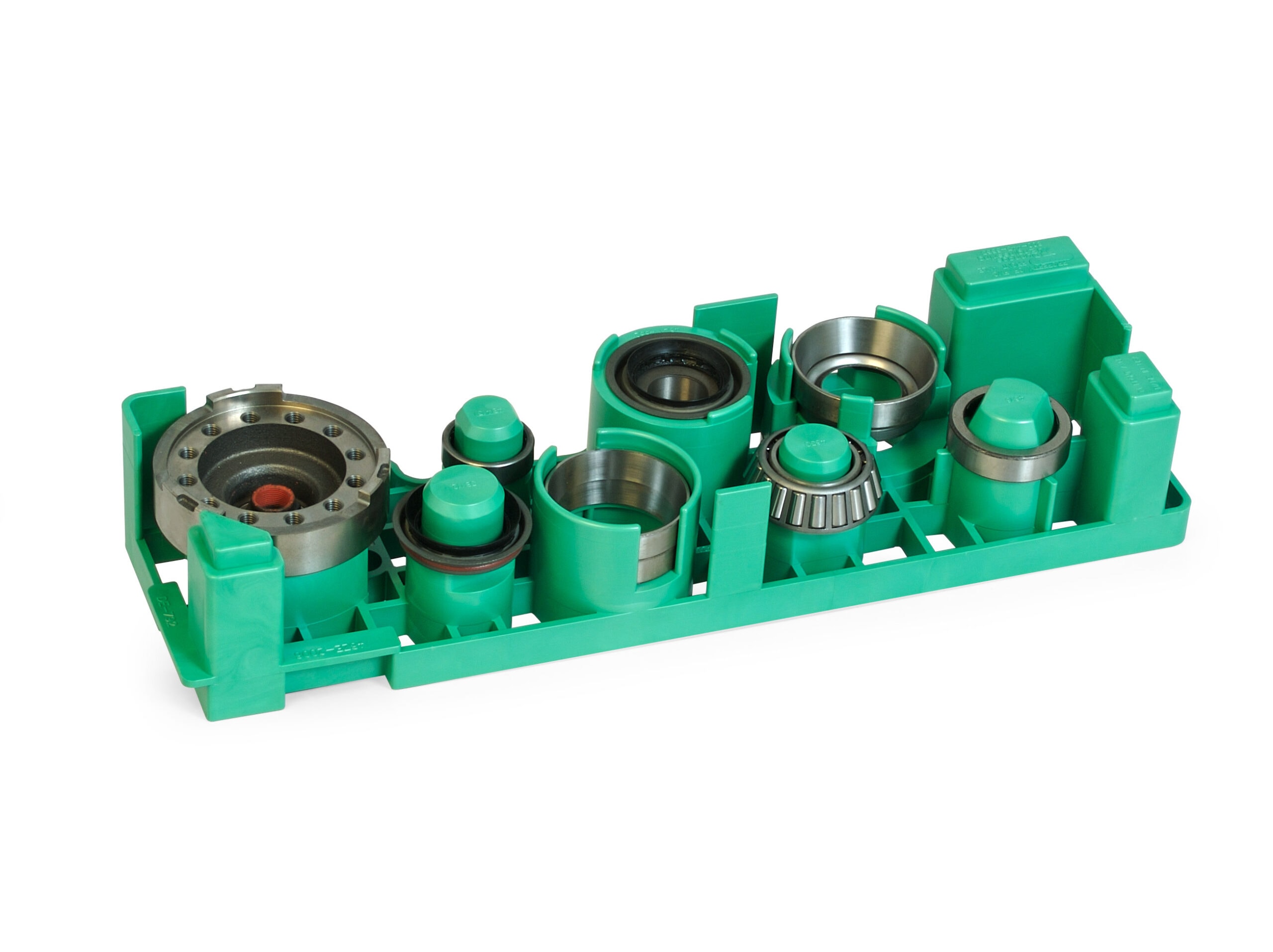

Part: Axle Component Kit

Parts per tray: One Kit
Size: 22.75″ x 6.50″ x 4.25″
578 x 165 x 108 (mm)

Part: Piston & Con-Rod

Parts per tray: 8
Size: 23.5″ x 22″ x 4.5″
597 x 559 x 114 (mm)
Features TPU nest inserts

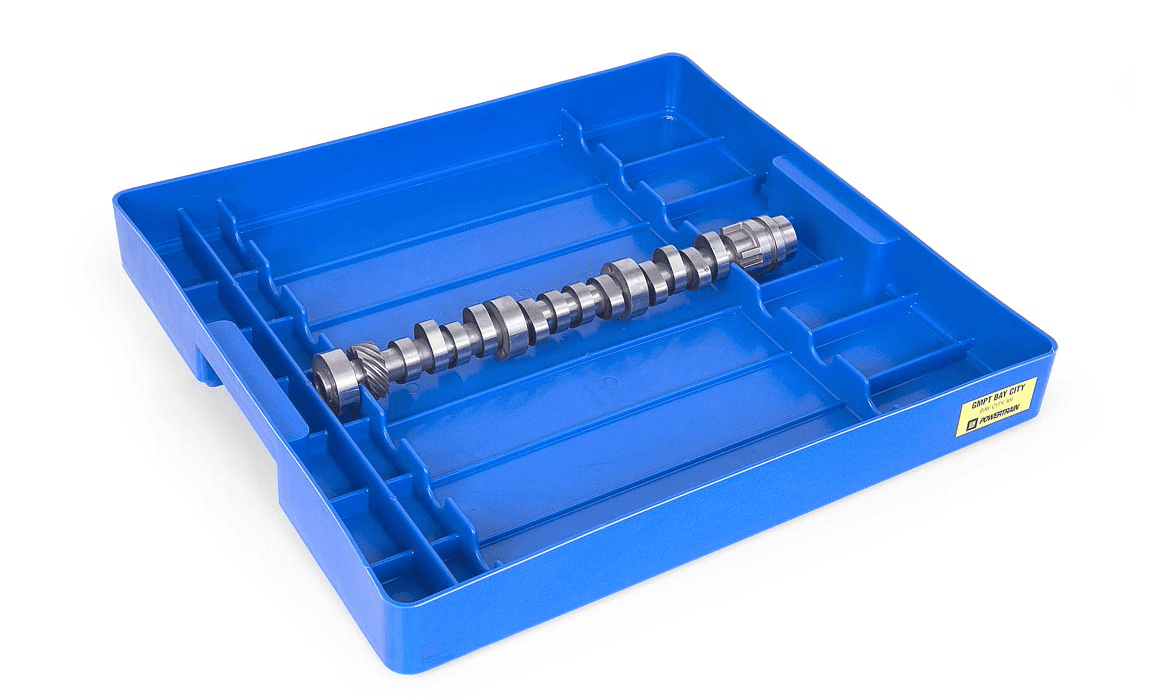

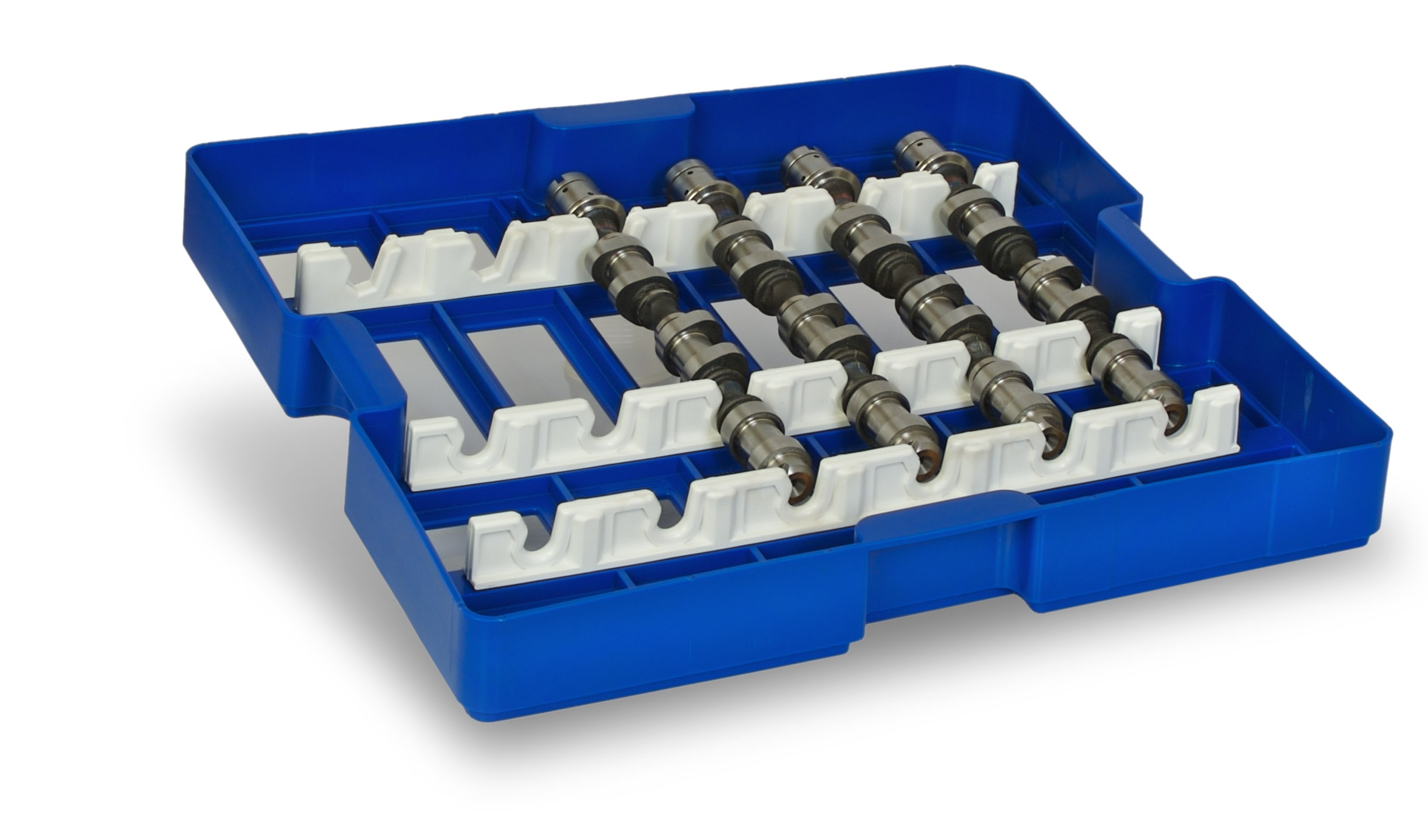

Part: Camshaft

Parts per tray: 6
Size: 23″ x 21.5″ x 3″
584 x 546 x 76 (mm)
Features TPU nest inserts

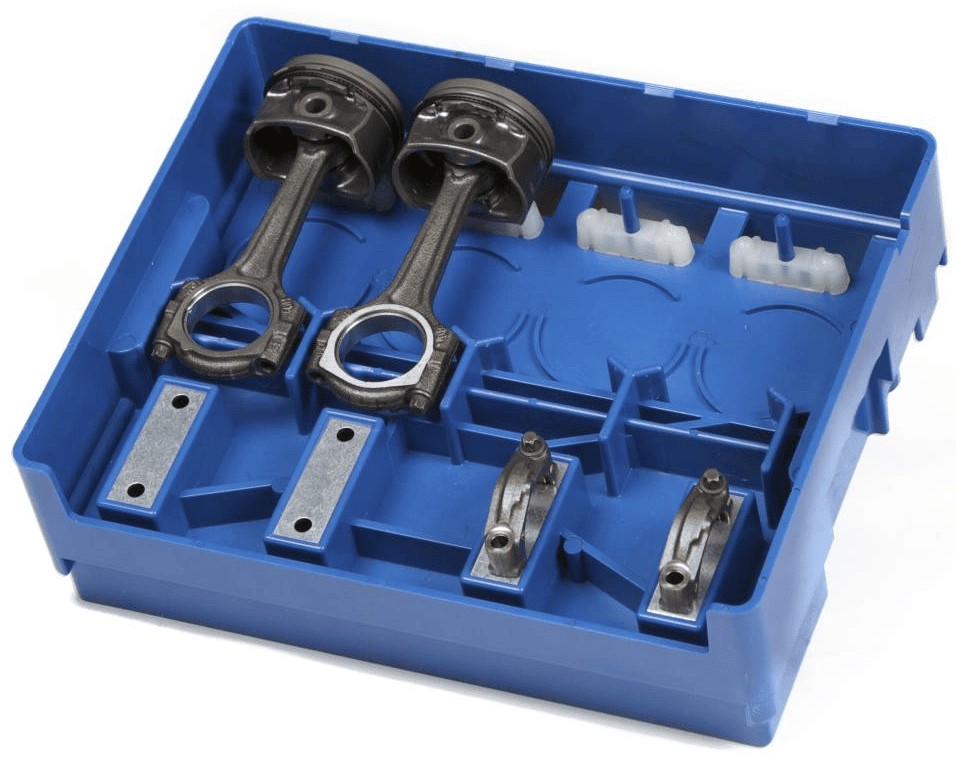

Part: Piston Kit

Parts per tray: 4
Size: 15″ x 12″ x 4.69″
381 x 305 x 119 (mm)
TPU inserts and steel wear plates

Part: Connecting Rod

Parts per tray: 24
Size: 23.75″ x 14.88″ x 3.75″
603 x 378 x 95 (mm)

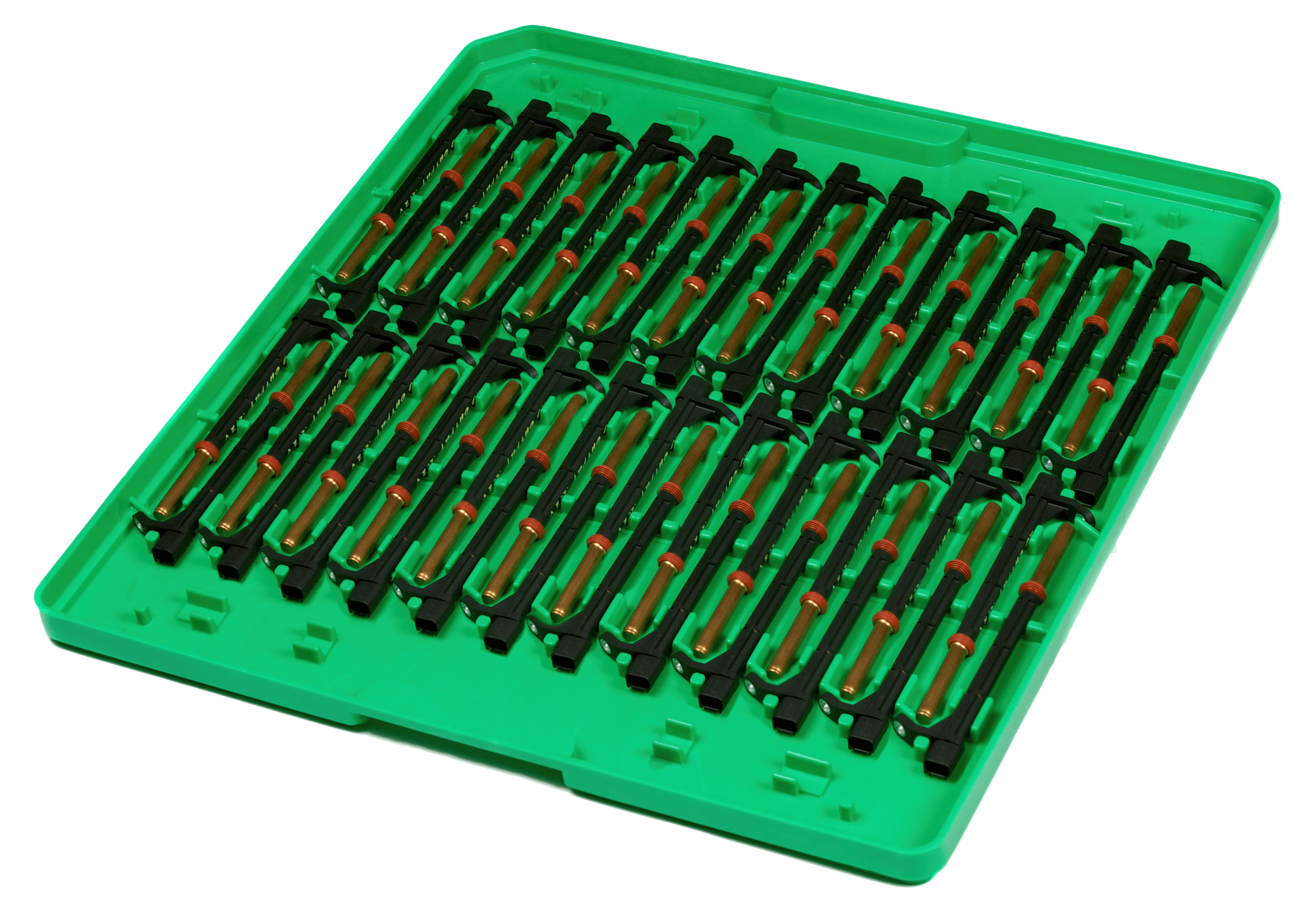

Part: Crank Position Sensor

Parts per tray: 48
Size: 23.75” x 22.25” x 1.31”
603 x 565 x 33 (mm)

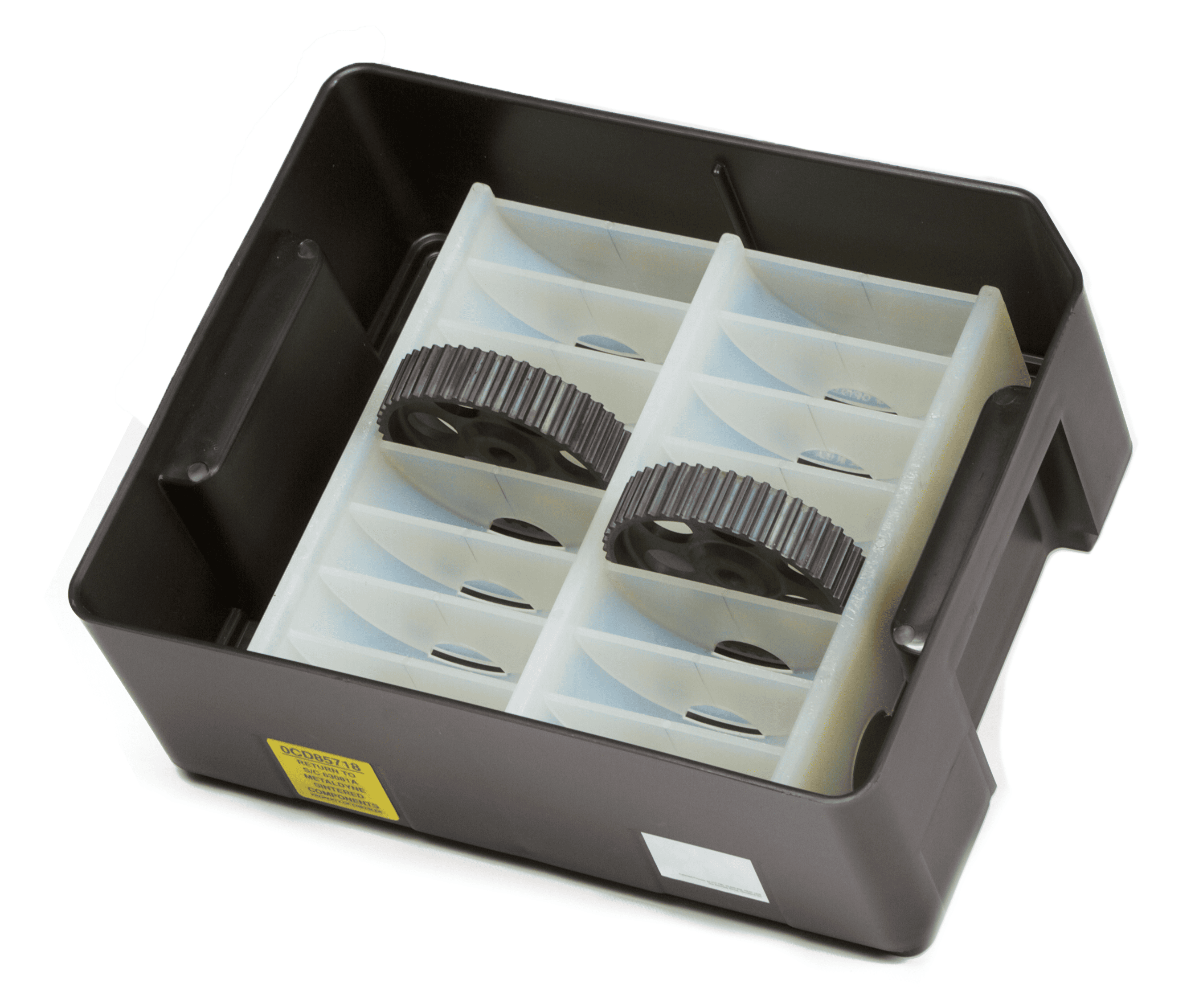

Part: Camshaft Sprocket

Parts per tray: 16
Size: 14.88″ x 11.88 x 5.88
378 x 302 x 149 (mm)
Features TPU nest tray insert

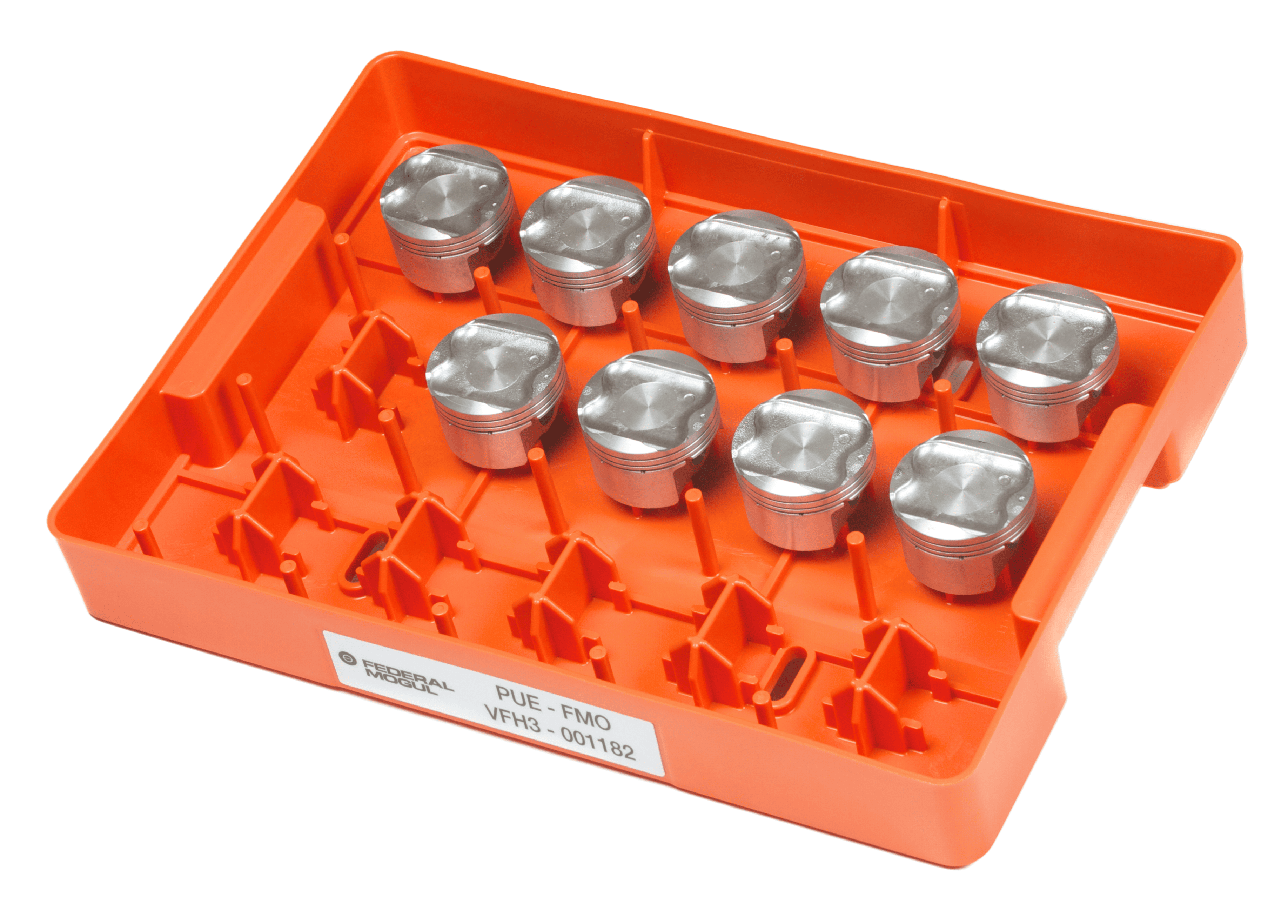

Part: Piston Head

Parts per tray: 15
Size: 22” x 15.75” x 3.06”
559 x 400 x 78 (mm)

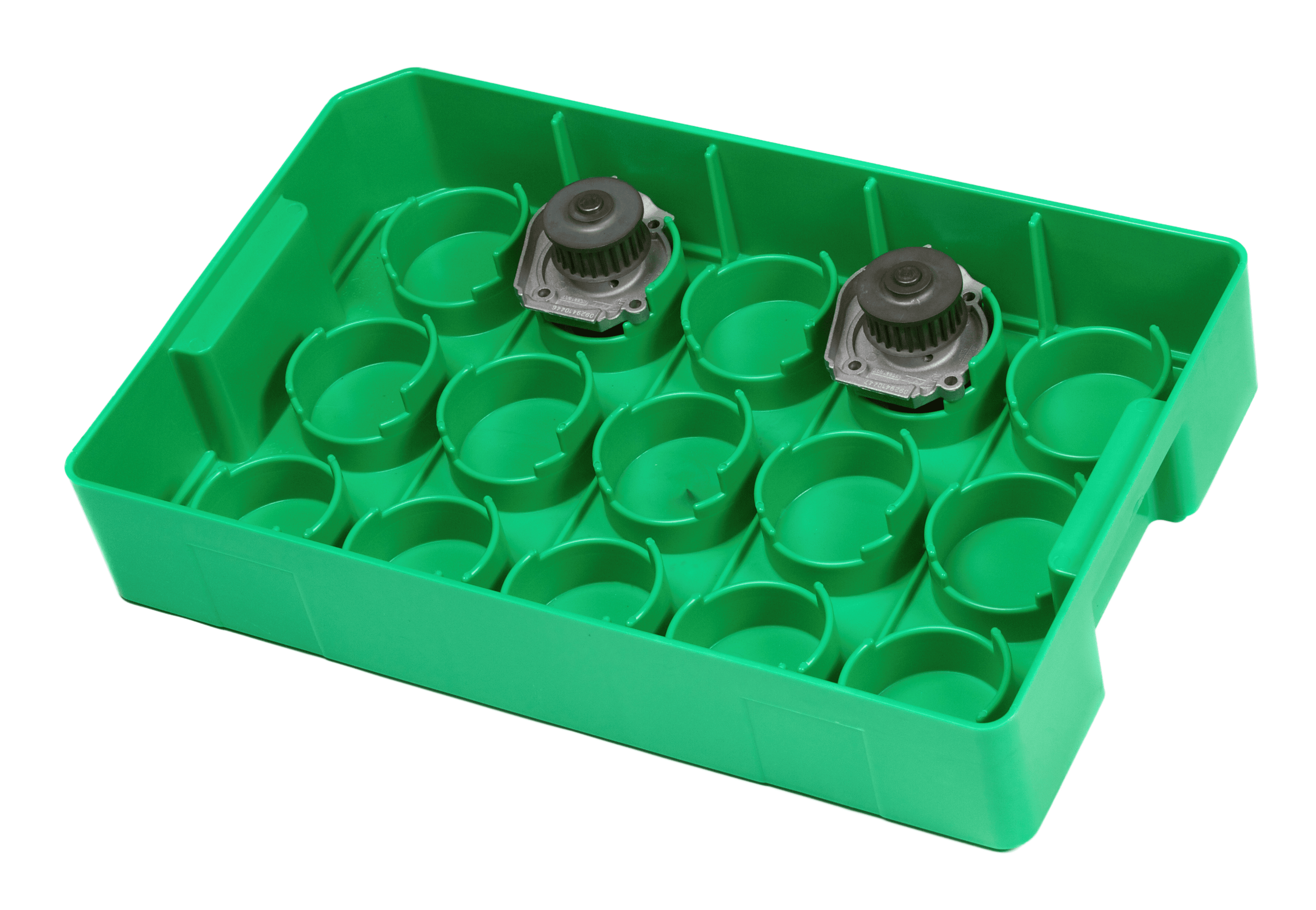

Part: Water Pump

Parts per tray: 15
Size: 23.88” x 14.88″ x 4.50″
607 x 378 x 114 (mm)

Part: Fuel Pump

Parts per tray: 9
Size: 14.88” x 11.88″ x 5″
378 x 302 x 127 (mm)

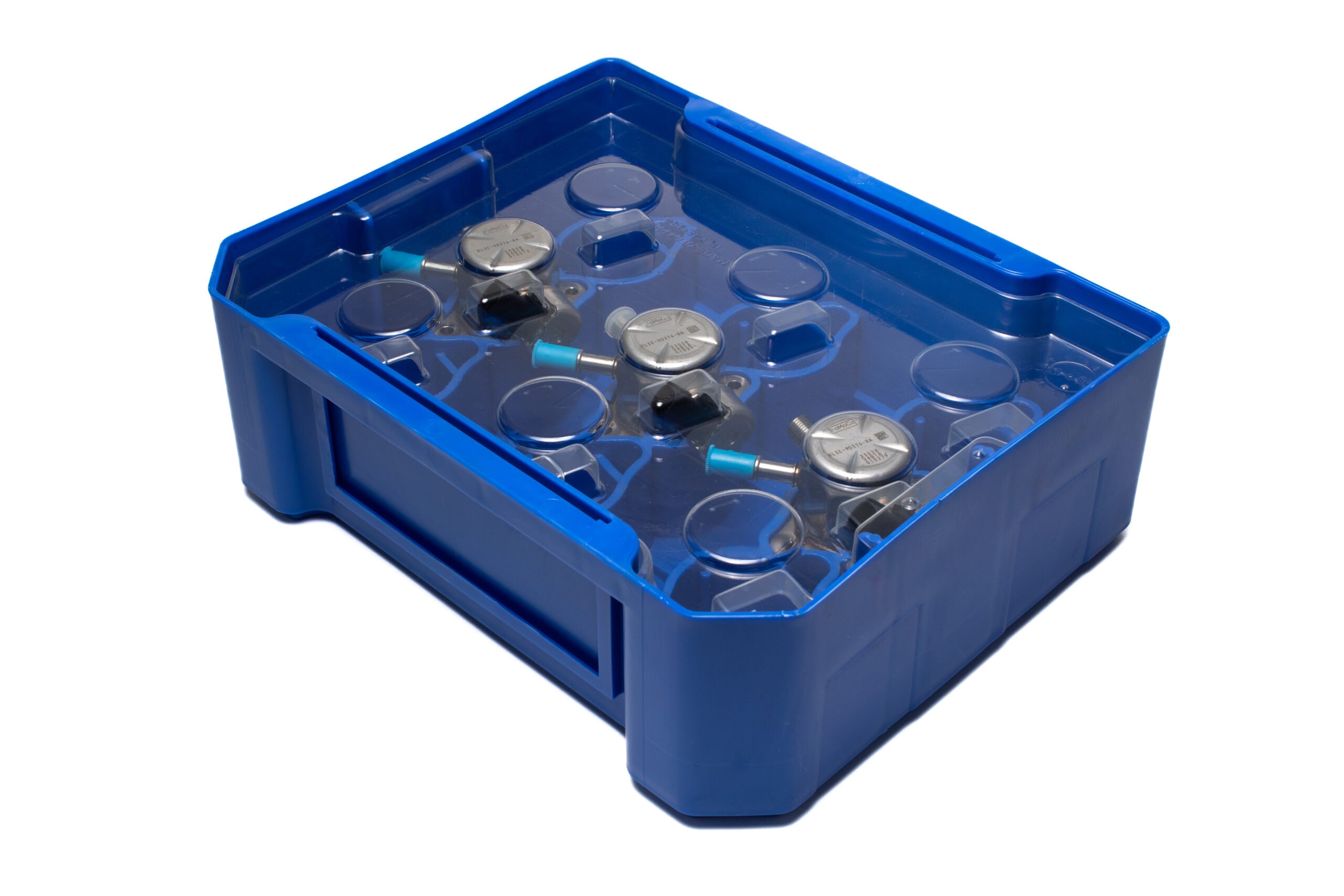

Part: Fuel Pump (with lid)

Parts per tray: 9
Size: 14.88” x 11.88″ x 5″
378 x 302 x 127 (mm)

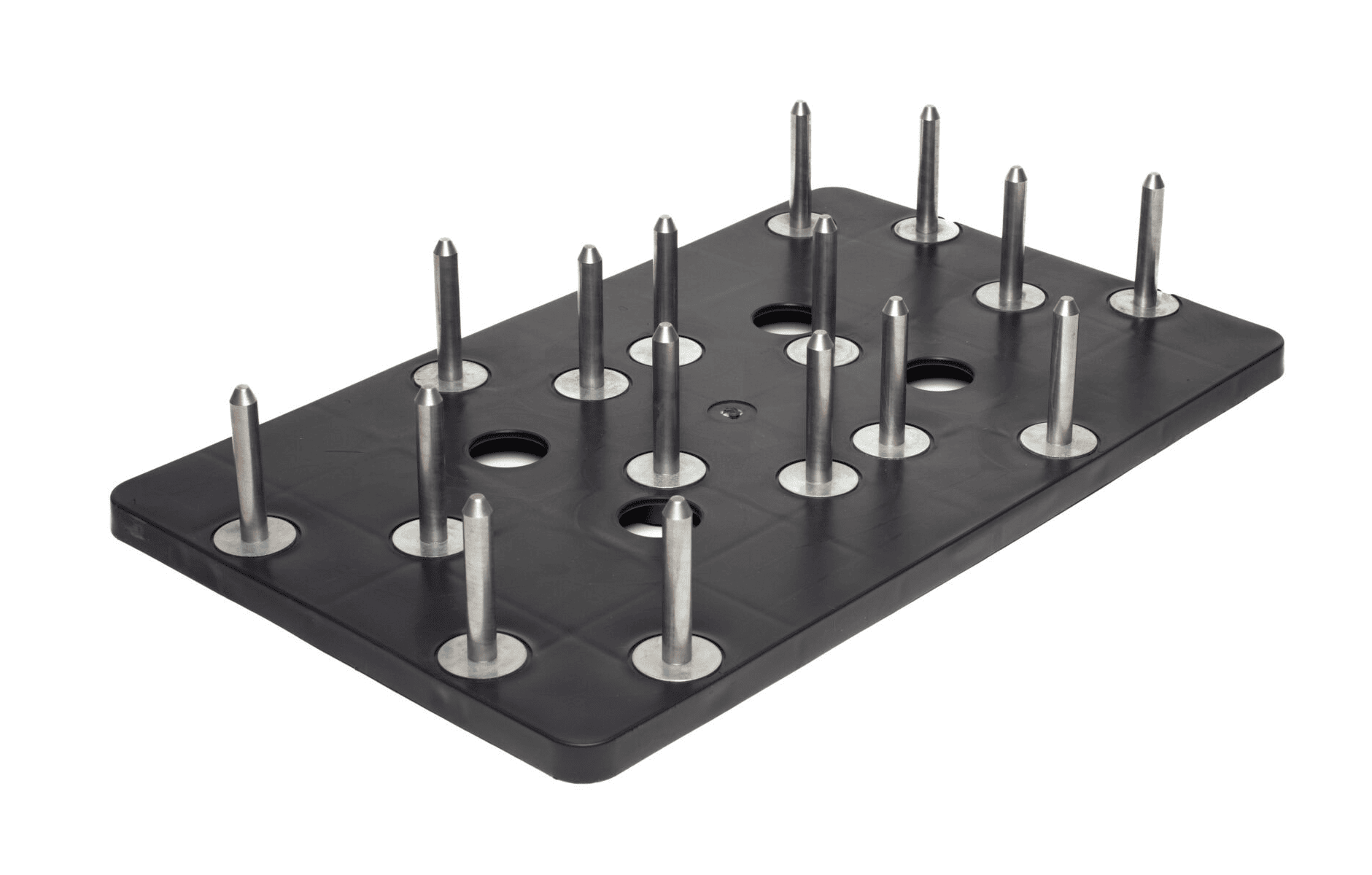

Part: Engine Gasket

Parts per tray: 120
Size: 21.38” x 13″ x 3.75″
543 x 330 x 95 (mm)
Features stainless steel pins

Part: Piston Head

Parts per tray: 20
Size: 23.25″ x 15.38″ x 4.25″
591 x 391 x 108 (mm)
Features TPU nest inserts

Part: Transmission Sun Gear

Parts per tray: 30
Size: 14.88″ x 11.88″ x 2.88″
378 x 302 x 73 (mm)

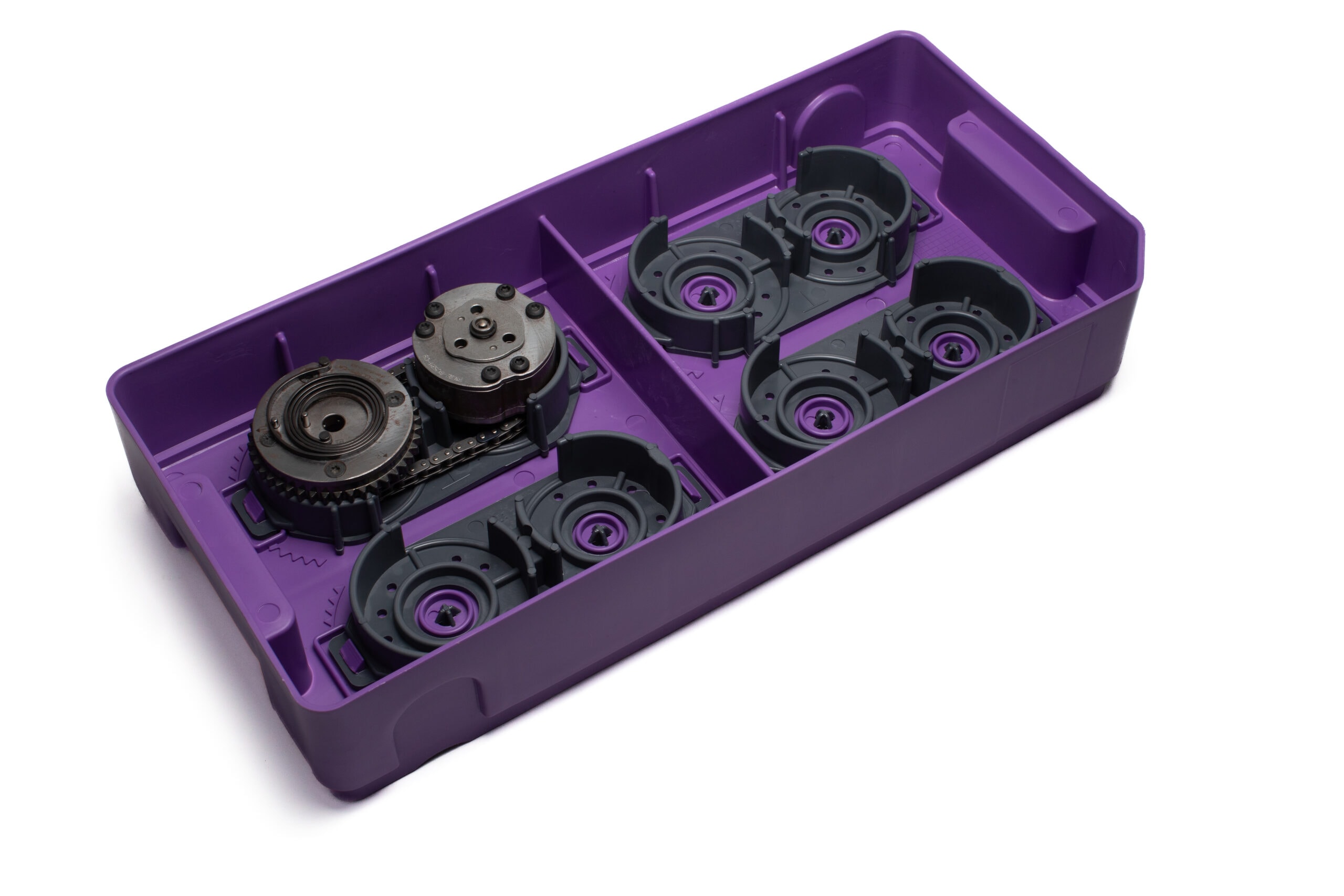

Part: VCT Sprocket & Chain

Parts per tray: 4
Size: 23.5” x 10.88″ x 4″
597 x 276 x 102 (mm)
Features TPU nest inserts

Part: EV Transaxle Pinion

Parts per tray: 16
Size: 23.88″ x 22″ x 6″
607 x 559 x 152 (mm)
Features TPU nest inserts

Part: Transmission Components

Parts per tray: One Kit
Size: 11.88″ x 8.88″ x 2.25″
302 x 226 x 57 (mm)
