- Economical dunnage solution!
- Tooling already exists.
- Many are kept in stock at all times.
Standard Injection Molded Dunnage
Standard Injection Molded Dunnage
100% RecyclableThermoplastics
| Brush & Comb Dunnage | Material | Applications | Assembly Method | PDF Downloads | CAD Solid Model Downloads |
|---|---|---|---|---|---|

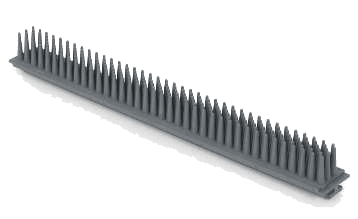

 Brush Dunnage | Thermoplastic Elastomer (TPE) | Generic part separation Captures part flange Close-off swing bars Sheet metal panels Glass panels | Insert into slotted steel channel or aluminum extrusion | ||
 XL Brush Dunnage | Thermoplastic Elastomer (TPE) | Generic part separation Captures part flange Close-off swing bars Sheet metal panels Glass panels | Insert into slotted steel channel or aluminum extrusion | ||
 Comb Dunnage | Thermoplastic Elastomer (TPE) | Generic part separation Captures straight part flange Close-off swing bars Sheet metal panels Glass panels | Insert into slotted steel channel or aluminum extrusion |
| Straight Pocket Separators | Material | Applications | Assembly Method | PDF Downloads | CAD Solid Model Downloads |
|---|---|---|---|---|---|
 DE414 0.88" Index (22mm) | Thermoplastic Elastomer (TPE) | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE393 1.25" Index (32mm) | Thermoplastic Elastomer (TPE) | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE91 1.25" Index (32mm) | Thermoplastic Elastomer (TPE) | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE1188-A 1.25" Index (32mm) | PC/PBT Alloy | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE1188-B 1.25" Index (32mm) | PC/PBT Alloy | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE2453 1.50" Index (38mm) | Thermoplastic Elastomer (TPE) | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE1115 1.50" Index (38mm) | PC/PBT Alloy | Part separation | Insert into slotted steel channel or aluminum extrusion | ||

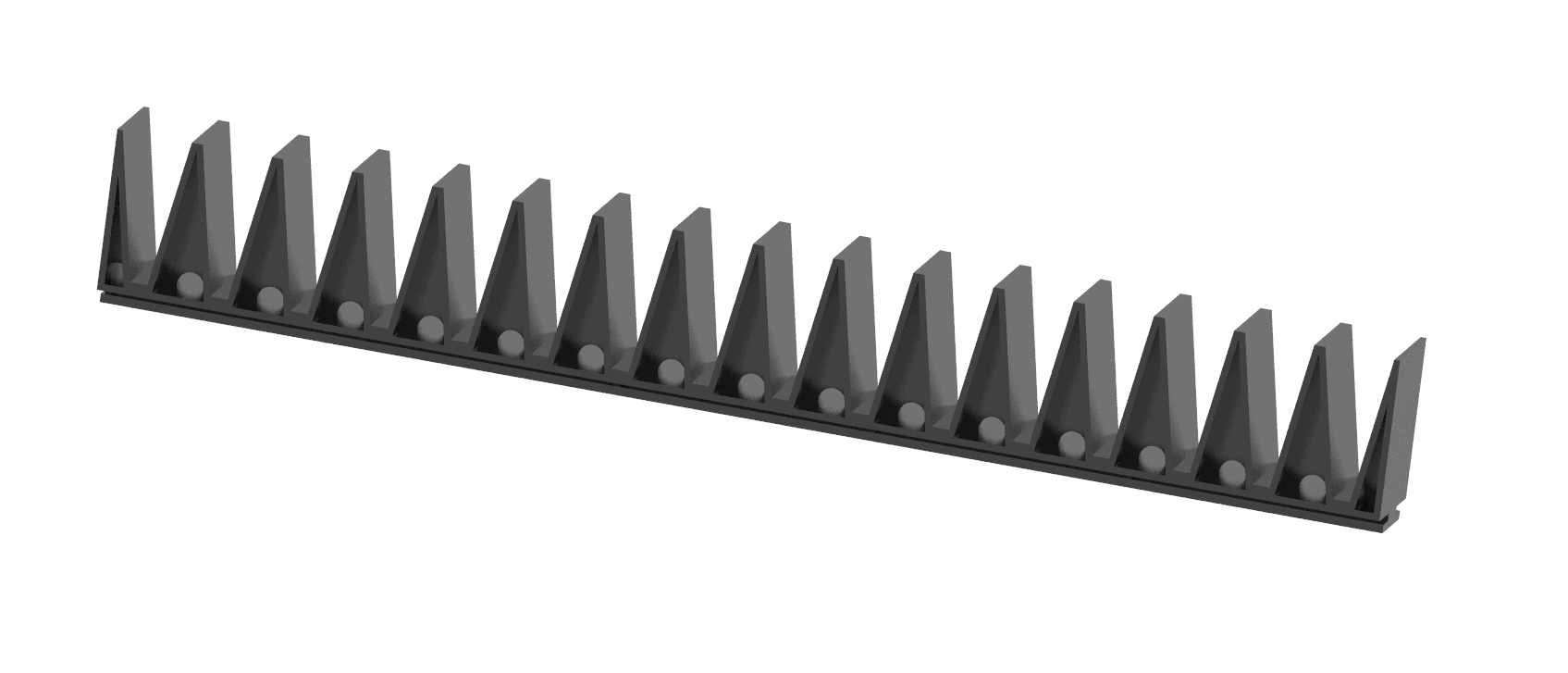

 DE1177 1.50" Index (38mm) | PC/PBT Alloy | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE143 2.00" Index (51mm) | Thermoplastic Elastomer (TPE) | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE100 2.00" Index (51mm) | Thermoplastic Elastomer (TPE) | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE428 2.00" Index (51mm) | Thermoplastic Elastomer (TPE) | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE1169 2.00" Index (51mm) | PC/PBT Alloy | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE1170 2.00" Index (51mm) | PC/PBT Alloy | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE1427 2.00 Index (51mm) | Polypropylene | Part separation | Screw or bolt to substrate | ||
 DE484 2.25" Index (57mm) | Thermoplastic Elastomer (TPE) | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE882 2.25" Index (57mm) | Thermoplastic Elastomer (TPE) | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE104 2.38" Index (60mm) | Thermoplastic Elastomer (TPE) | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE242 2.50" Index (64mm) | Thermoplastic Elastomer (TPE) | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE1127-A 2.50" Index (64mm) | PC/PBT Alloy | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE515 2.50" Index (64mm) | Thermoplastic Elastomer (TPE) | Part separation | Insert into slotted steel channel or aluminum extrusion | ||

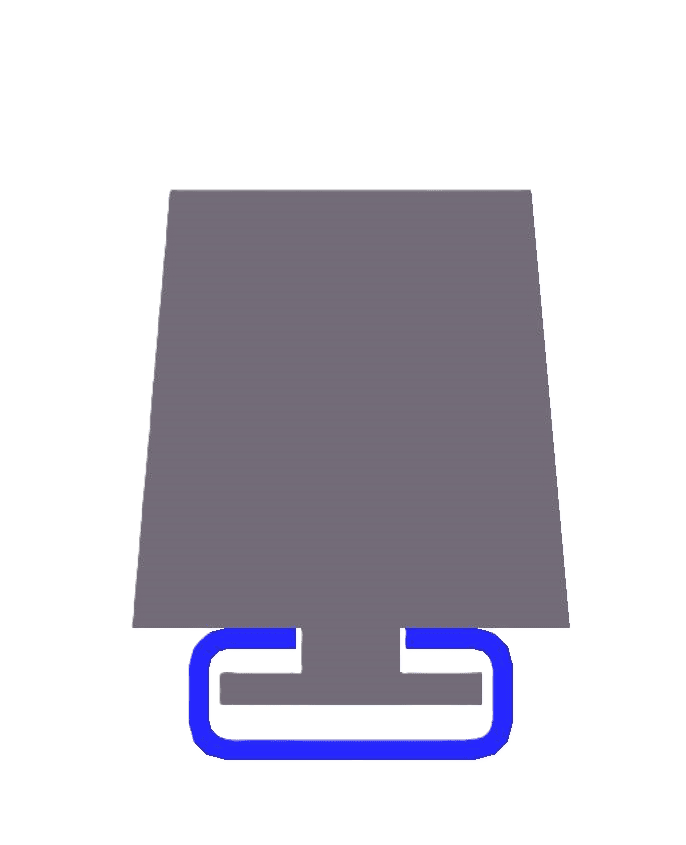

 DE754 2.75" Index (70mm) | Thermoplastic Elastomer (TPE) | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE754 2.75" Index (70mm) | Thermoplastic Urethane (TPU) | Part separation | Bolt onto 2" (51mm) steel or aluminum tube | ||

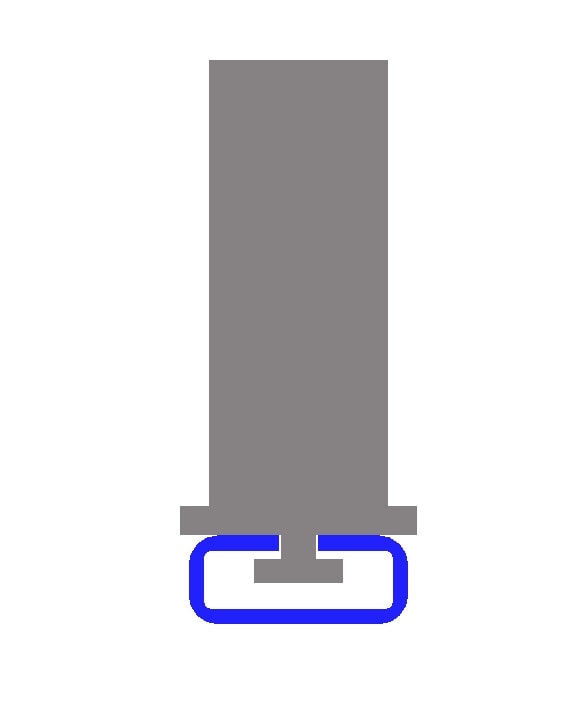

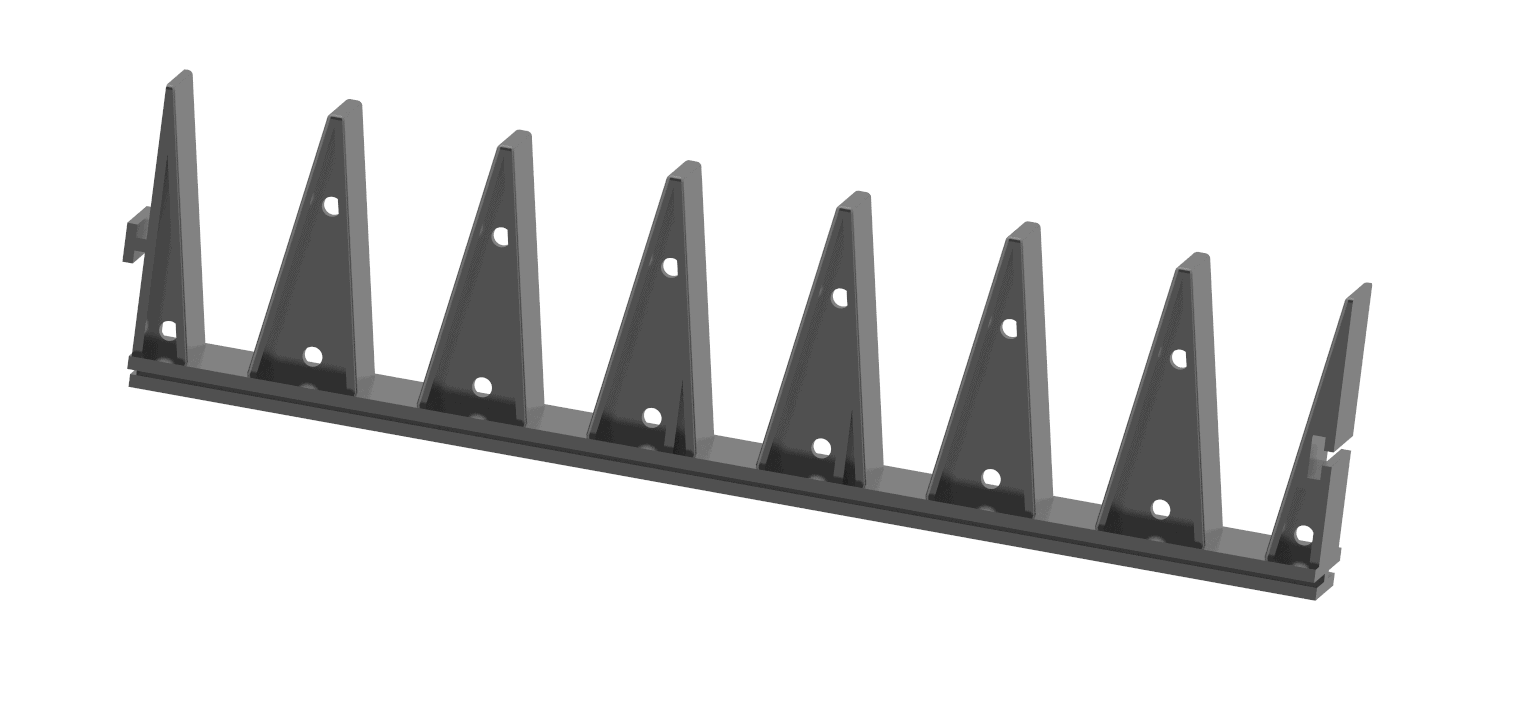

 DE833 3.25" Index (83mm) | Thermoplastic Elastomer (TPE) | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE1066 3.50" Index (89mm) | PC/PBT Alloy | Part separation | Insert into slotted steel channel or aluminum extrusion |
| Angled Pocket Separators | Material | Applications | Assembly Method | PDF Downloads | CAD Solid Model Downloads |
|---|---|---|---|---|---|
 DE1113-A 0.56" Index (14mm) Angled | Thermoplastic Vulcanizate (TPV) | Glass panel separation | Insert into slotted steel channel or aluminum extrusion![DE1113-A 0.56 Index](/wp-content/uploads/DE1113-End-View-2.jpg" "DE1113-A 0.56 Index") | ||
 DE1113-B 0.75" Index (19mm) Angled | Thermoplastic Vulcanizate (TPV) | Glass panel separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE1113-C 0.75" Index (19mm) Angled | Thermoplastic Vulcanizate (TPV) | Glass panel separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE1113-F 0.75" Index (19mm) Angled | Thermoplastic Vulcanizate (TPV) | Glass panel separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE2067 1.50" Index (38mm) Angled | Thermoplastic Vulcanizate (TPV) | Glass panel separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE2454 1.50" Index (38mm) Angled | Thermoplastic Elastomer (TPE) | Bottom separators for curved panel Side dunnage for panel with 18 degree lean | Insert into slotted steel channel or aluminum extrusion | ||
 DE396 1.63" Index (41mm) Angled | Thermoplastic Elastomer (TPE) | Bottom separators for curved panel Side dunnage for panel with 10 degree lean | Insert into slotted steel channel or aluminum extrusion | ||
 DE47 1.75" Index (44mm) Angled | Thermoplastic Elastomer (TPE) | Bottom seperators for curved panel Side dunnage for panel with 11 degree lean | Insert into slotted steel channel or aluminum extrusion | ||
 DE164 2.00" Index (51mm) Angled | Thermoplastic Elastomer (TPE) | Bottom seperators for curved panel Side dunnage for panel with 18 degree lean | Insert into slotted steel channel or aluminum extrusion | ||
 DE427 2.00" Index (51mm) Angled | Thermoplastic Elastomer (TPE) | Bottom seperators for curved panel Side dunnage for panel with 5 degree lean | Insert into slotted steel channel or aluminum extrusion | ||
 DE1198-A 2.00" Index (51mm) Angled | Thermoplastic Elastomer (TPE) | Bottom seperators for curved panel Side dunnage for panel with 10 degree lean | Bolt onto 2" (51mm) steel or aluminum tube | ||
 DE279 2.63" Index (67mm) Angled | Thermoplastic Elastomer (TPE) | Bottom separators for curved panel Side dunnage for panel with 7 degree lean | Insert into slotted steel channel or aluminum extrusion |
| Cone Shaped Separators | Material | Applications | Assembly Method | PDF Downloads | CAD Solid Model Downloads |
|---|---|---|---|---|---|
 DE1149 1.50" Index (38mm) | Thermoplastic Elastomer (TPE) | Glass panel separation Curved Panels | Insert into slotted steel channel or aluminum extrusion | ||

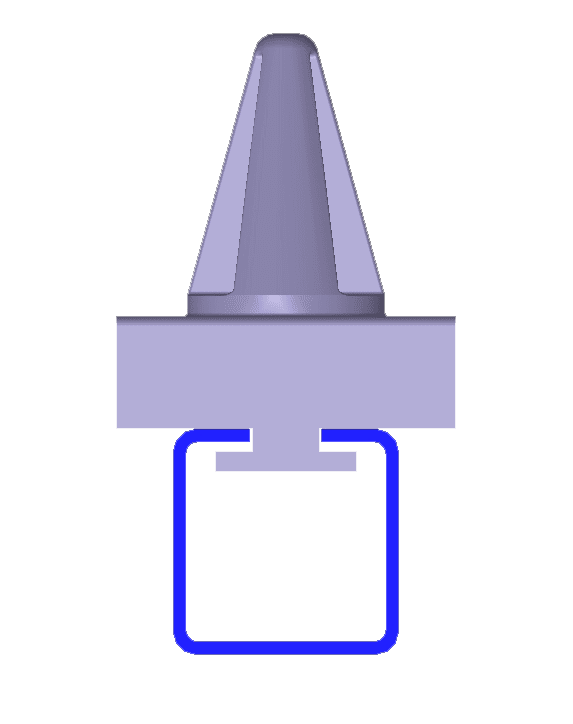

 DE1380 2.00" Index (51mm) | Thermoplastic Vulcanizate (TPV) | Glass panel separation Curved Panels | Insert into slotted steel channel or aluminum extrusion | ||
 DE812 2.25" Index (57mm) | Thermoplastic Elastomer (TPE) | Glass panel separation Curved Panels | Insert into slotted steel channel or aluminum extrusion | ||
 DE743 3.00" Index (76mm) | Thermoplastic Elastomer (TPE) | Glass panel separation Curved Panels | Insert into slotted steel channel or aluminum extrusion |
| Fin Type Separators | Material | Applications | Assembly Method | PDF Downloads | CAD Solid Model Downloads |
|---|---|---|---|---|---|
 DE1112-A 1.25" Index (32mm) | PC/PBT Alloy | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE1218 1.50" Index (38mm) | PC/PBT Alloy | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE1123 2.00" Index (51mm) | PC/PBT Alloy | Part separation | Insert into slotted steel channel or aluminum extrusion | ||
 DE1112-B 2.50" Index (64mm) | PC/PBT Alloy | Part separation | Insert into slotted steel channel or aluminum extrusion |
| Cushion Bumper Bars | Material | Applications | Assembly Method | PDF Downloads | CAD Solid Model Downloads |
|---|---|---|---|---|---|

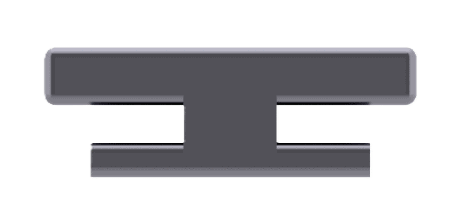

 Flat T-Rubber | Thermoplastic Elastomer (TPE) | Part protecting bumper | Insert into slotted steel channel or aluminum extrusion | ||
 DE90 1.00" Cushion (25mm) | Thermoplastic Elastomer (TPE) | Bottom separators for curved panel | Insert into slotted steel channel or aluminum extrusion | ||
 DE461 1.88" Cushion (48mm) | Thermoplastic Elastomer (TPE) | Part protecting bumper | Insert into slotted steel channel or aluminum extrusion | ||
 DE434 2.50" Cushion (64mm) | Thermoplastic Elastomer (TPE) | Part protecting bumper | Insert into slotted steel channel or aluminum extrusion |
| Dunnage Stops | Material | Applications | Assembly Method | PDF Downloads | CAD Solid Model Downloads |
|---|---|---|---|---|---|

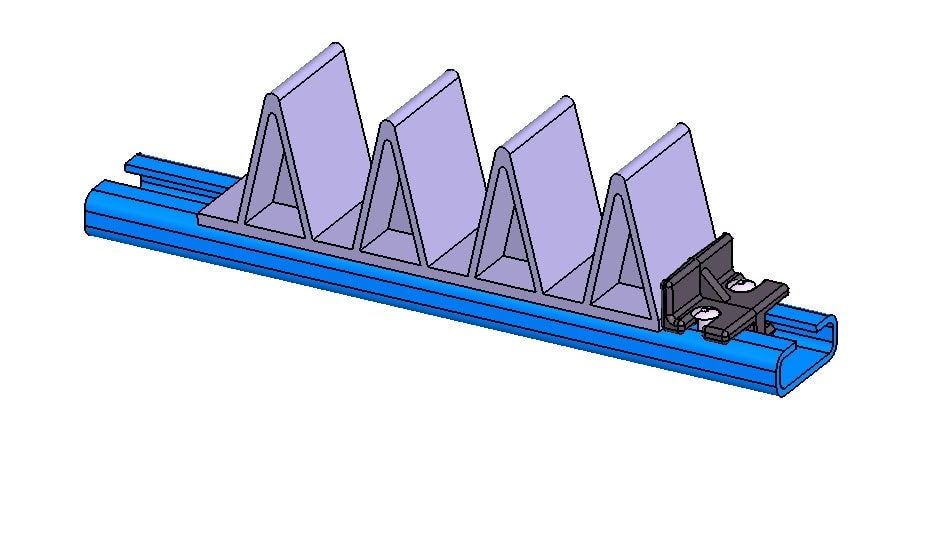

 DE410-N Bar Stop PN 31770 | PC/PBT Alloy | Secure T-track dunnage within C-Channel | Insert into slotted steel channel or aluminum extrusion | ||
 DE569 Bar Stop | PC/ABS Alloy | Secure T-track dunnage within C-Channel | Insert into slotted steel channel or aluminum extrusion | ||
 DE1132 Channel End Cap Stop | Thermoplastic Elastomer (TPE) | Secure T-track dunnage at end of C-Channel | Insert into slotted steel channel |
| Flippers | Material | Applications | Assembly Method | PDF Downloads | CAD Solid Model Downloads |
|---|---|---|---|---|---|
 DE1416 Vertical Flipper | PC/ABS Alloy | Vertically load and unload panels in horizontal part orientation | Attach to weldment with shoulder bolt | ||
 Vertical Flippers | PC/PBT Alloy | Vertically load and unload panels in horizontal part orientation | Attach to weldment with shoulder bolt | ||
 DE1294 Flipper | Polypropylene arm / PVC head | Glass panel separation | Load onto steel pipe through pivot hole | ||
 DE1083/84 Round Head Flipper | Polypropylene arm / PVC head | Glass panel separation | Load onto steel pipe through pivot hole | Available upon request | |

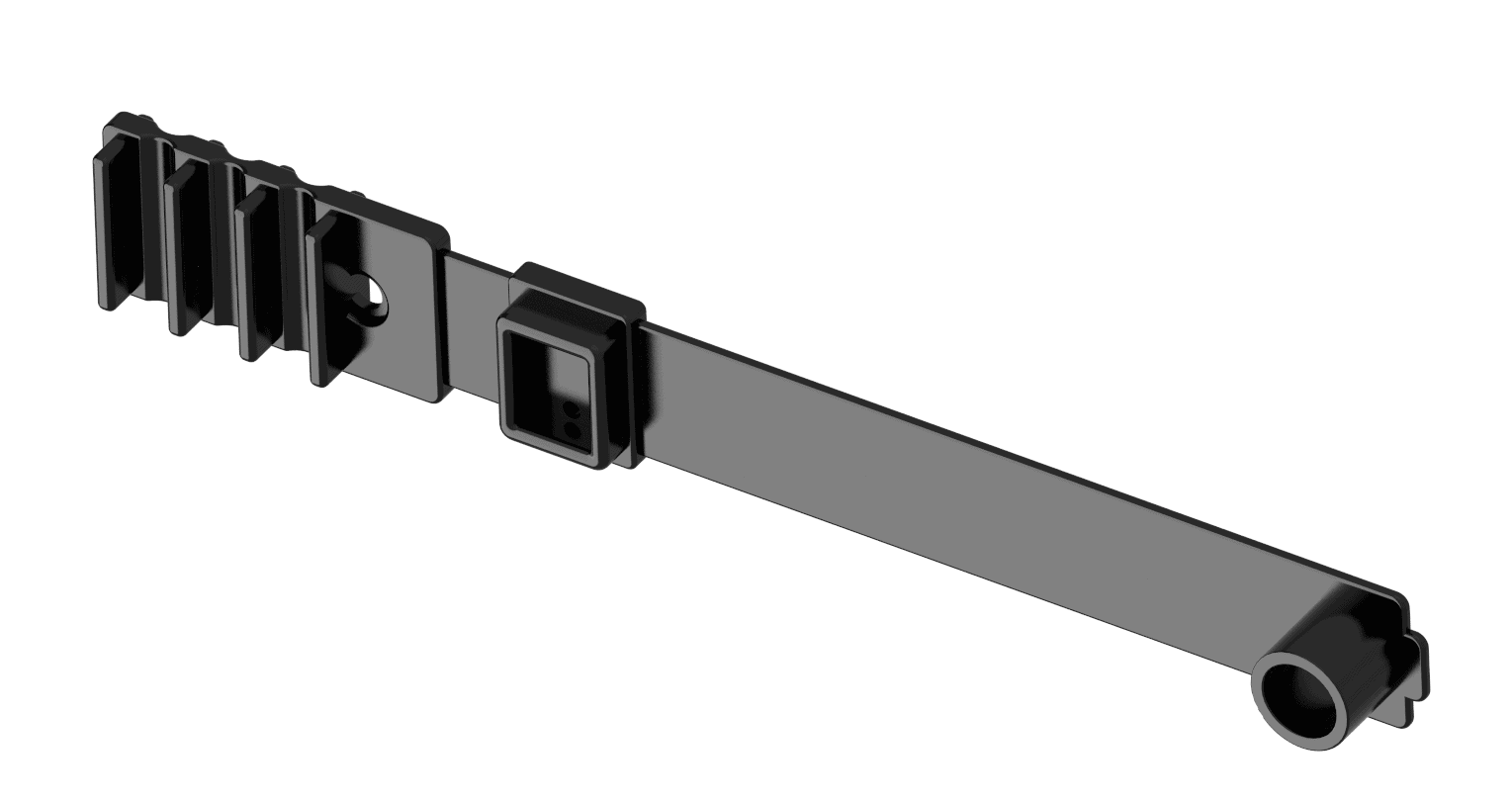

 DE1083/84 Rectangle Head Flipper | Polypropylene arm / PVC head | Glass panel separation | Load onto steel pipe through pivot hole | Available upon request |

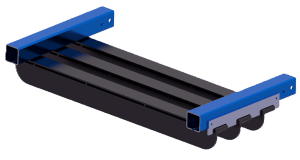

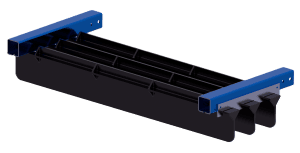

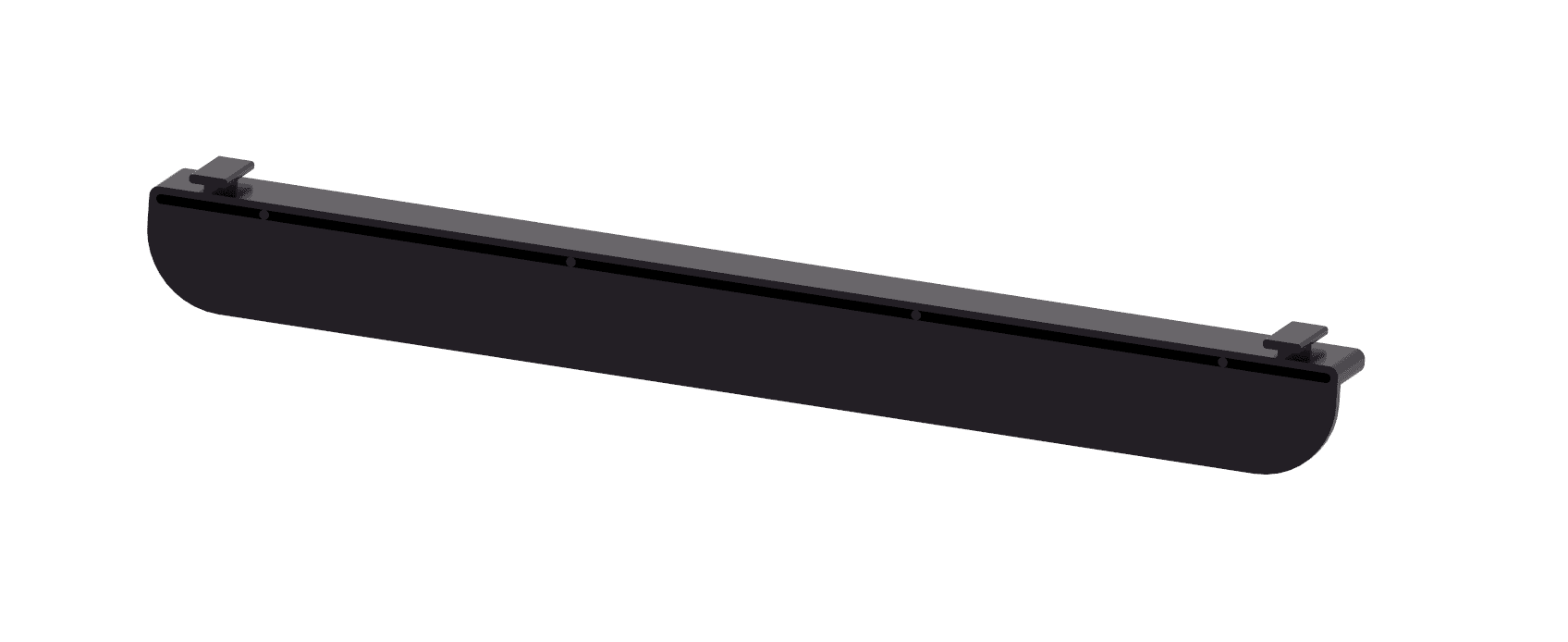

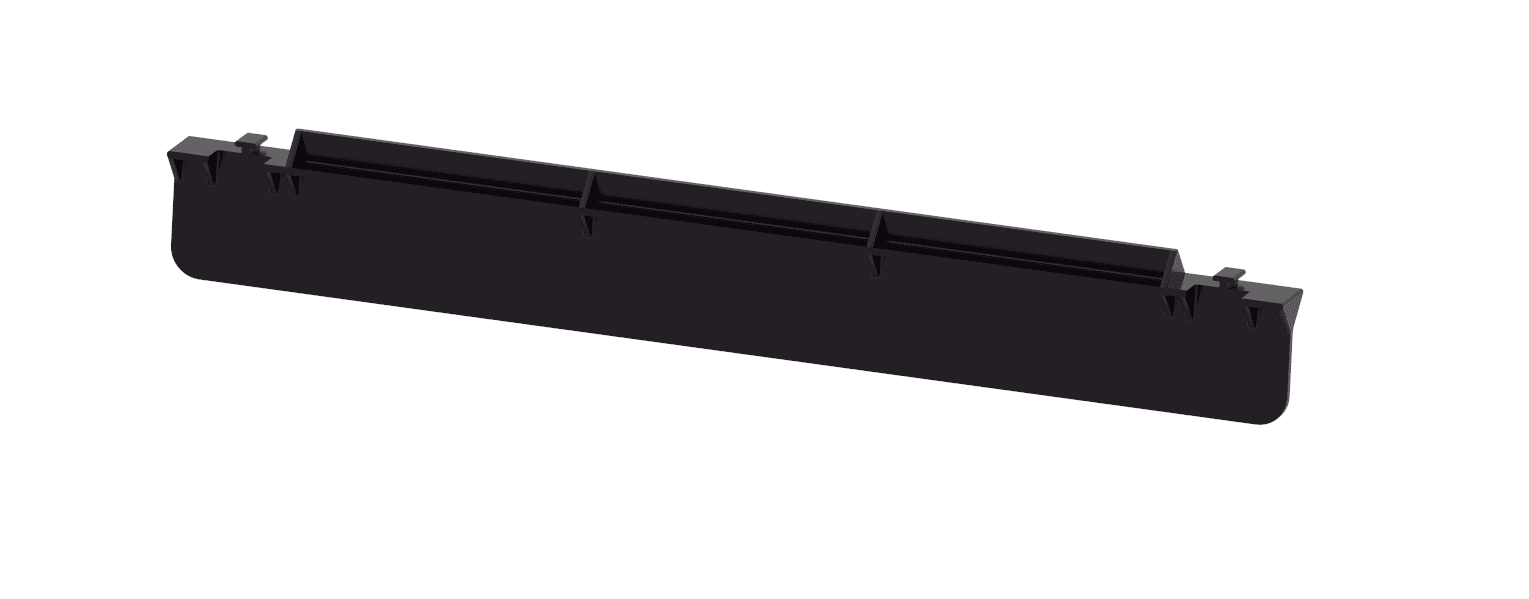

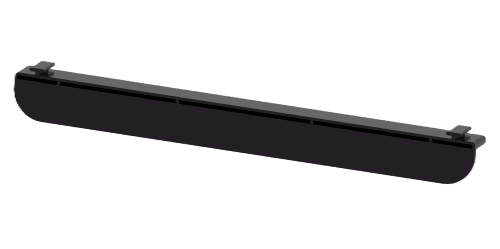

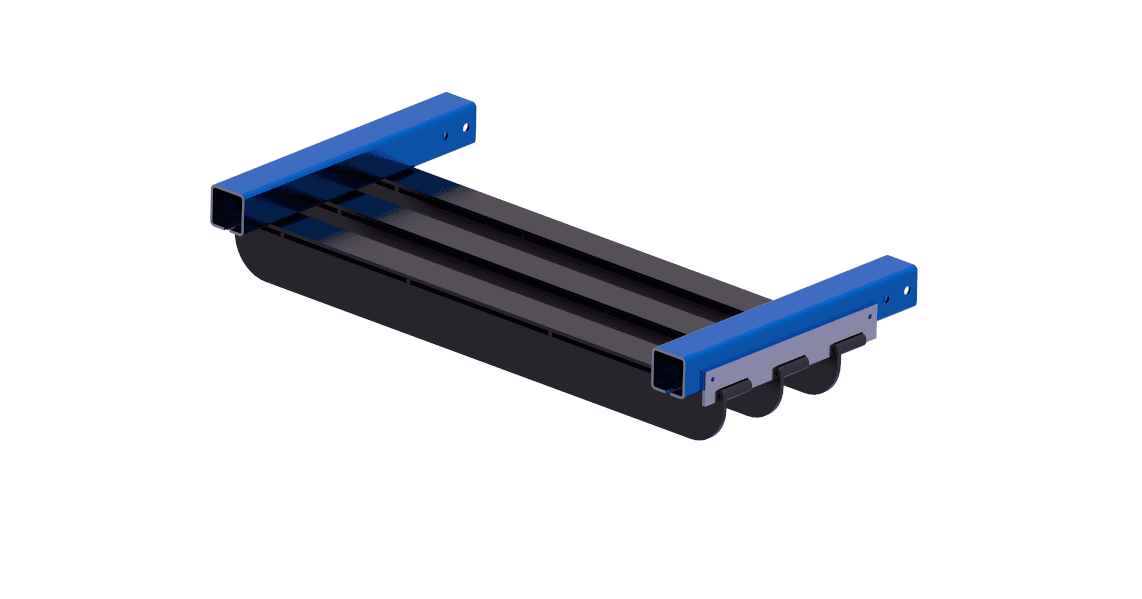

| Overhead Paddles | Material | Applications | Assembly Method | PDF Downloads | CAD Solid Model Downloads |
|---|---|---|---|---|---|

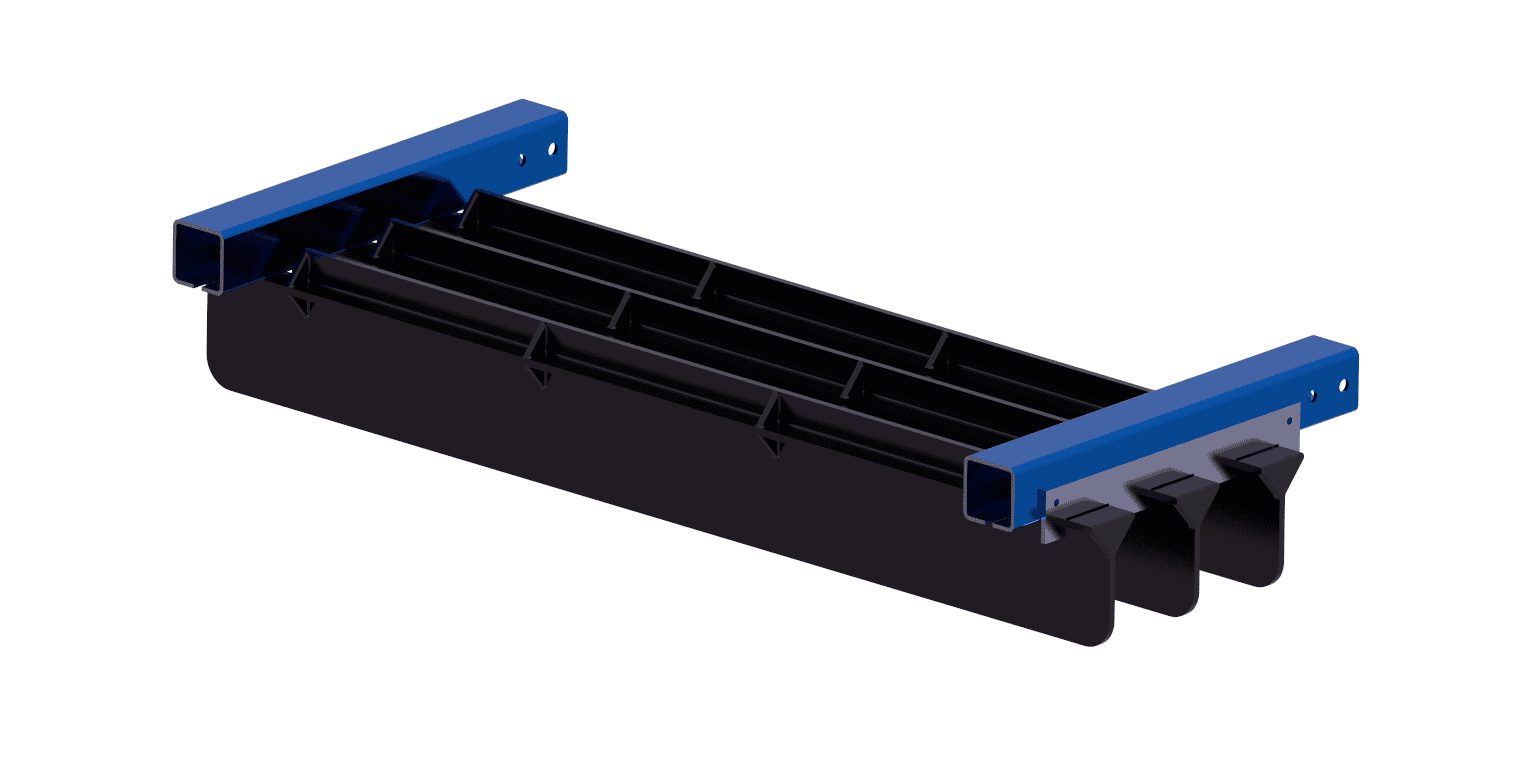

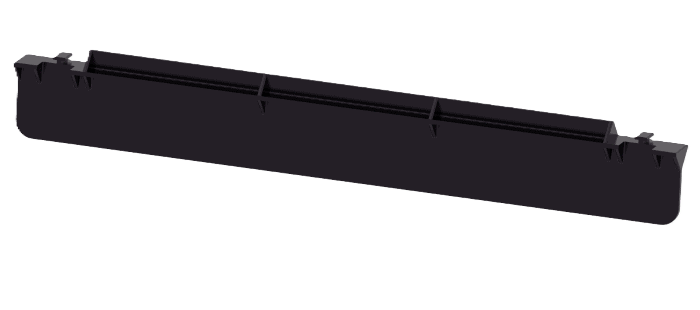

 DE56 Paddle Options | Polypropylene | Part Loading Aid Part Separation | Insert into slotted steel channel | ||
 DE1770 2.00" Index (51mm) | Polypropylene | Part Loading Aid Part Separation | Insert into (4) slotted steel channels |
| Other Standard Components | Material | Applications | Assembly Method | PDF Downloads | CAD Solid Model Downloads |
|---|---|---|---|---|---|
 DE634 Tube-End Bumper | Thermoplastic Elastomer (TPE) | Side to Side Locator (Fascia Panels) Back Stop for Glass Back Stop for Skins | Bolts to the end of 2" (51mm) Square Tube | ||
 DE2655 Square Tube Insert | Polypropylene | Part Locator | Bolts inside end of 2" (51mm) Square 7ga (4.5mm)Tube | ||
 Glass Panel TPU Button | Thermoplastic Urethane (TPU) | Glass panel separation Used on flip-down shelves | Pop-rivet or bolt | ||
 DE1129 Anti-Abrasion Snap-In Button | Thermoplastic Urethane (TPU) | Protects against plastic shavings in tray / tote applications where a sharp edge may rest or hit during shipment | Snaps into a round hole within a .18" (4.8mm) thick flat plastic surface | ||

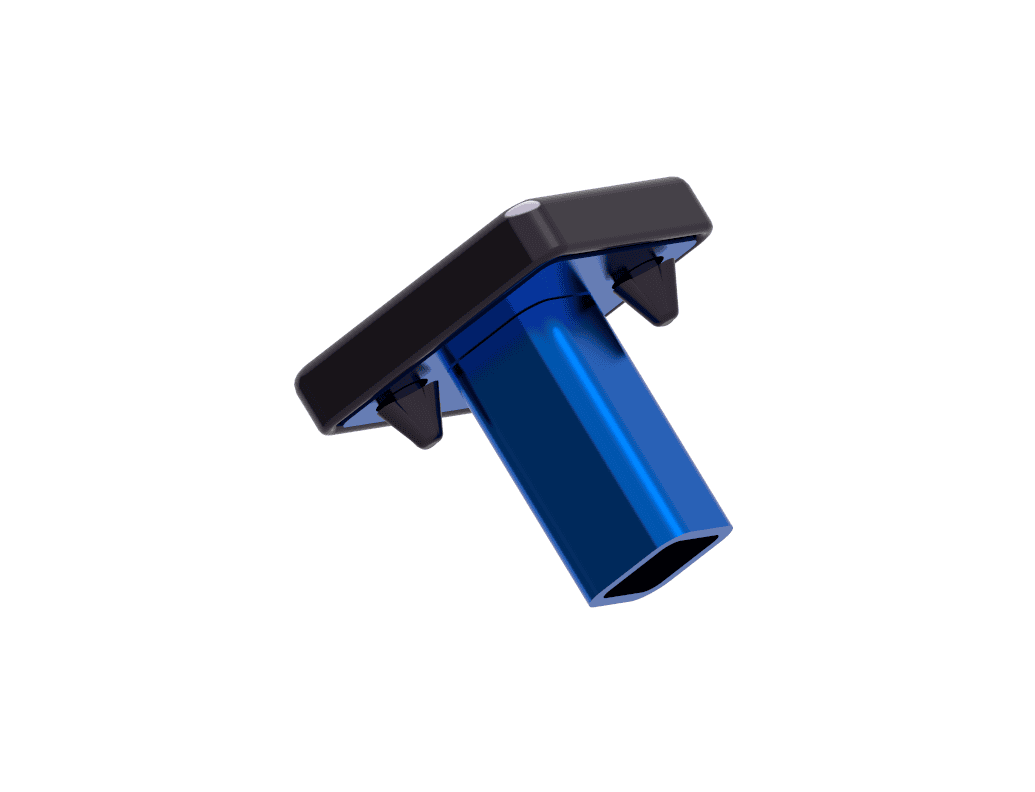

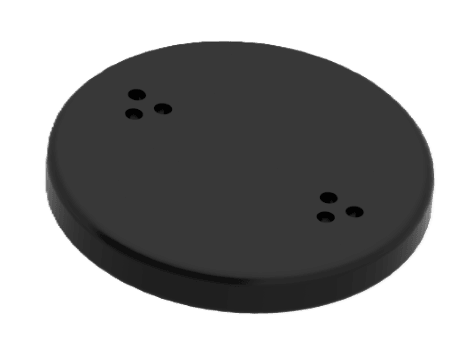

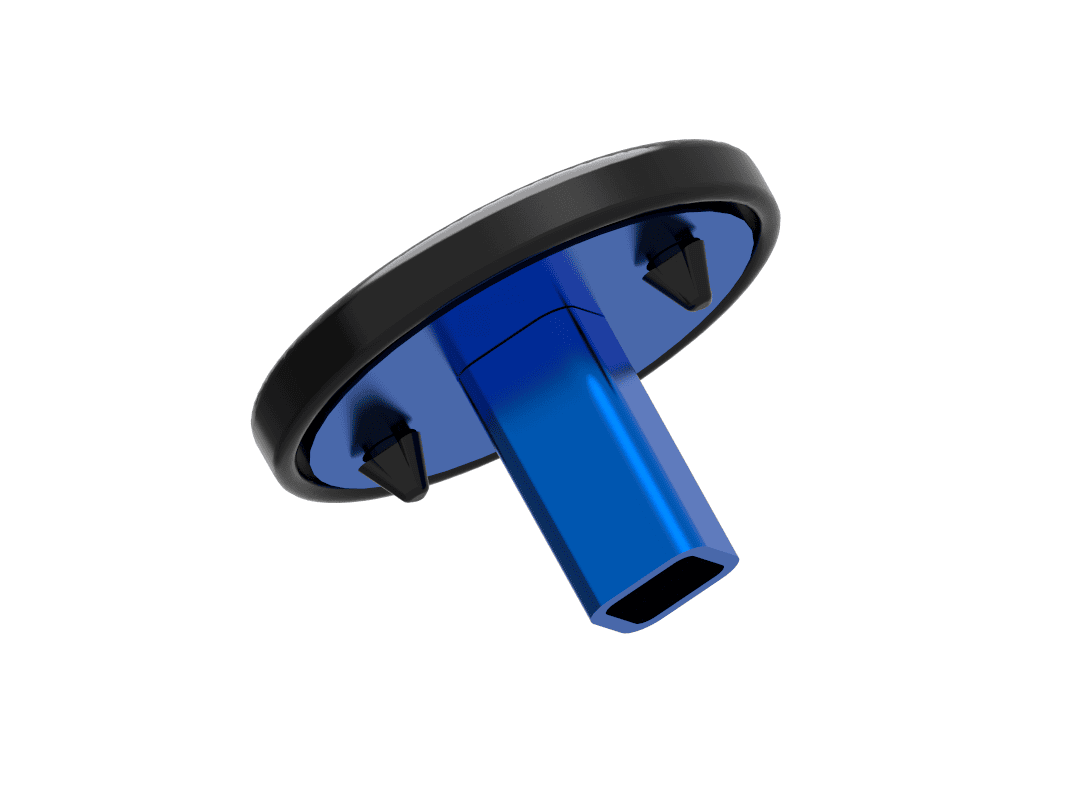

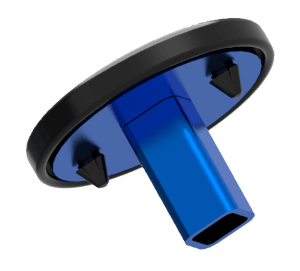

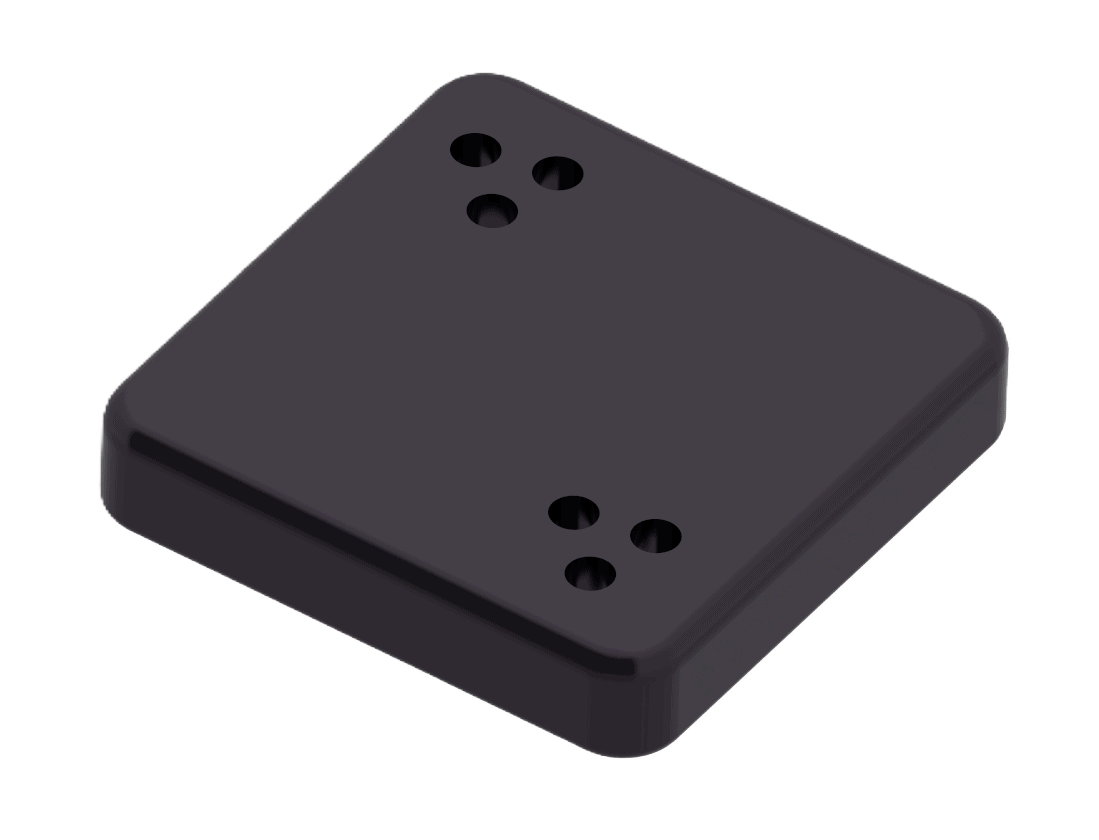

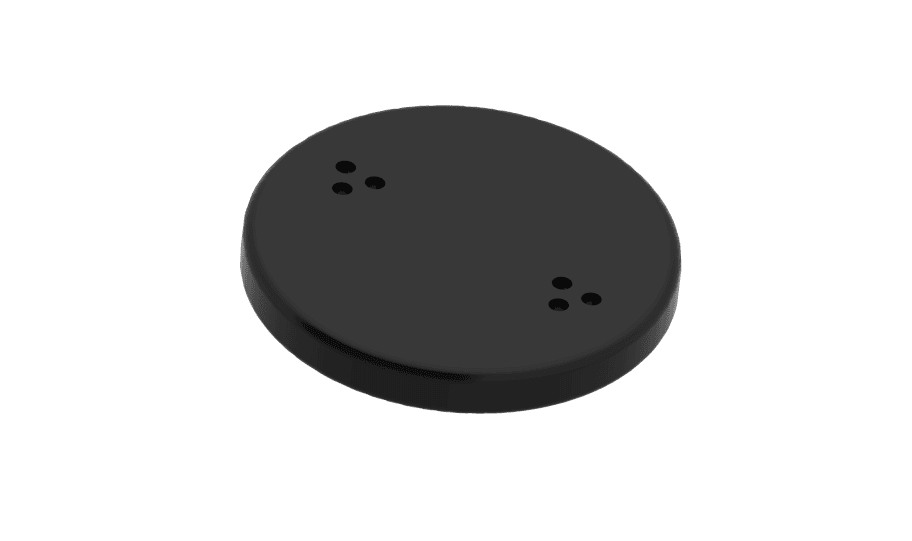

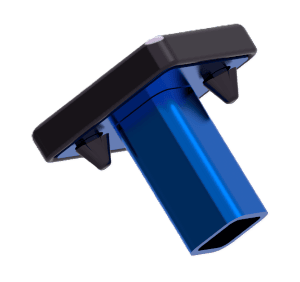

 DE1274 Round Pad Pivoting Assembly | PVC | Self adjusting back stop | Weld onto steel tube | ||
 DE1116 Rubber Sleeve | Thermoplastic Elastomer (TPE) | Bumper stop | Press fits over steel bar | ||
 Glass Panel Roller Options | Thermoplastic Vulcanizate (TPV) | Glass panel separation | Spins on steel rod attached to flip shelves | Available upon request | |
 DE1039 Label Holder | Polypropylene w/ PSA tape | Bar code or identification card holder used on shipping racks | Mounts to either vertical or horizontal steel tube |
Can’t find the part you are looking for? Please contact us. Many of our standard tools are not featured on this website.
